P5 Stadium Perimeter Banner LED Display

Lsport Series:

The perimeter LED display is used in stadium fencing advertising, and an information display can display any length of strip advertising, it is used for a lot of sports games, indoor: basketball, volleyball, indoor football, ice hockey games, skating games, badminton, gymnastics. Outdoor: football, triathlon and so on.

Product features:

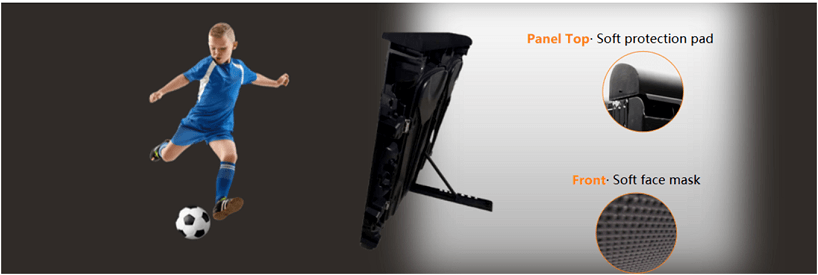

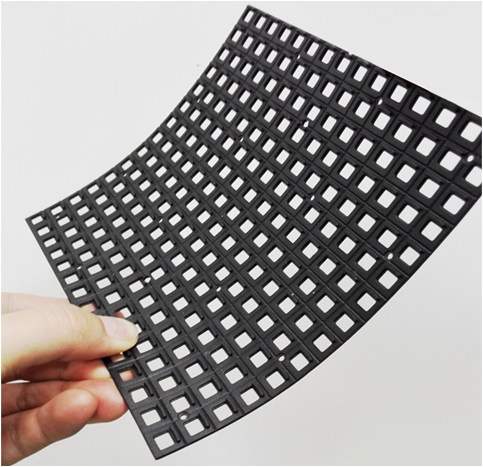

Soft mask to protect players.

Soft top cover to protect players.

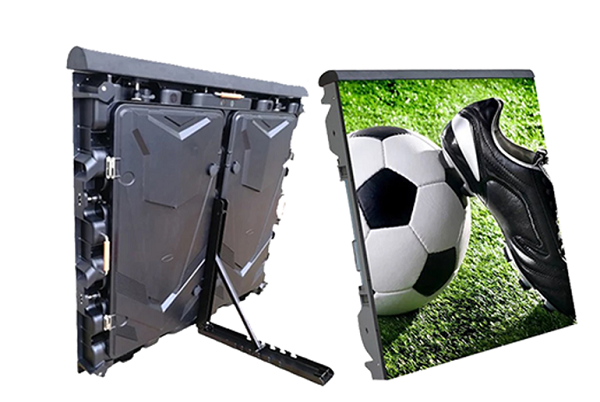

Back support to make it could stand alone.

High refresh rate to record clear in the professional camera.

Waterproof with IP65.

Wide View Angle.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

Multi-functional Outdoor Solutions

Pixel pitch 4mm, 5mm, 6.67mm, 8mm and 10mm is available

Multi-functional Outdoor advertising, fixed installation, hanging installation and sports perimeter banner display.

Safety Cushion

Soft cushion design is effective in protecting the cabinet from the damage cause by the ongoing tight sports. Besides, the soft cushion can be removable to support hanging installation for rental applications.

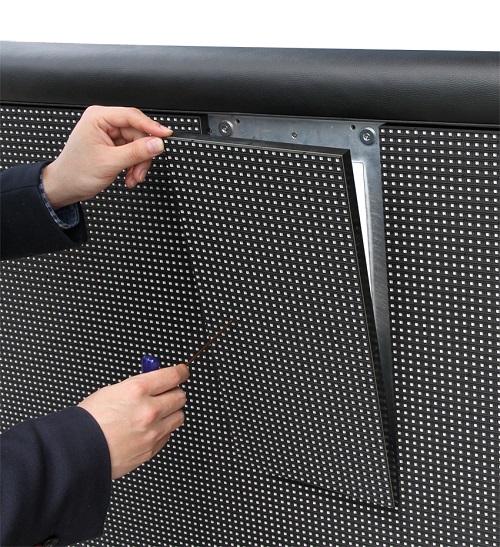

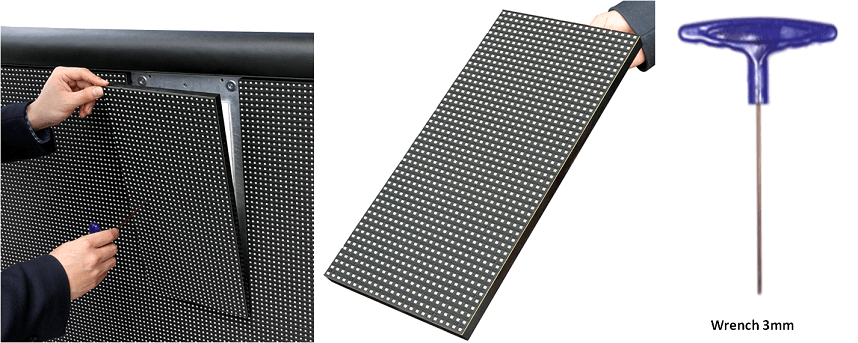

Front & Rear Maintenance

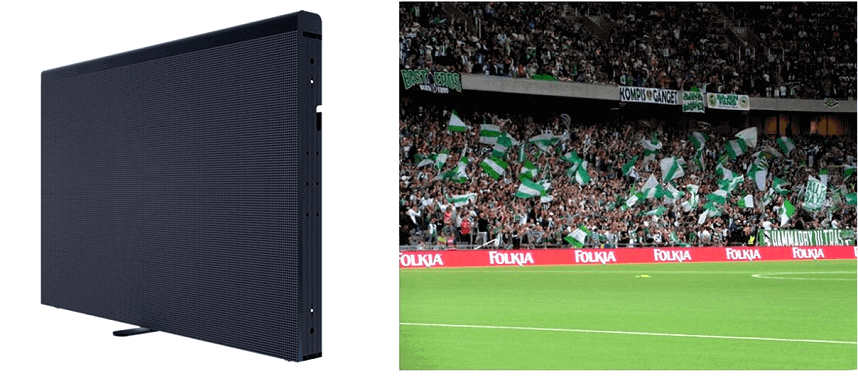

For Sports

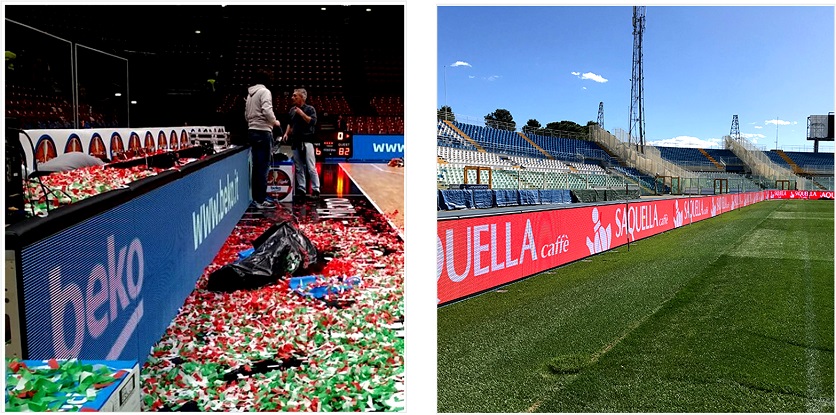

Recommended for indoor and outdoor stadiums: Basketball courts, Volleyball stadium, football stadiums etc.

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

Sport-Lsport

ITEM	Lsport-P5
Pixel Pitch	5mm
LED Lamp Model	SMD1921
Brightness(nits)	5500-6500nits
Cabinet Size (W*H)	960x960mm
Cabinet Weight (kg/m2)	35kg
Cabinet Resolution (W*H)	192x192
Density of Pixels (pixels/m2)	40,000 pixels
Cabinet Material	Die-casting Aluminum
Protection Level	IP65/IP54
Viewing Angle (degree)	140/140
Operating Environment	-20~+50℃ 10%-90% RH
Refresh Rate	1920/3840Hz
Gray Scale	14 bit
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	720W/㎡
Average Power (W/m2)	240W/㎡
Maintenance Way	Front&Rear
