Transparent LED Screen (Clear Series)
Transparent LED Screen (Clear Series)
Transparent LED Screen (Clear Series)
Transparent LED Screen (Clear Series)
Transparent LED Screen (Clear Series)
Transparent LED Screen (Clear Series)
Transparent LED Screen (Clear Series)
Transparent LED Screen (Clear Series)

Transparent LED Screen (Clear Series)

Clear Series:

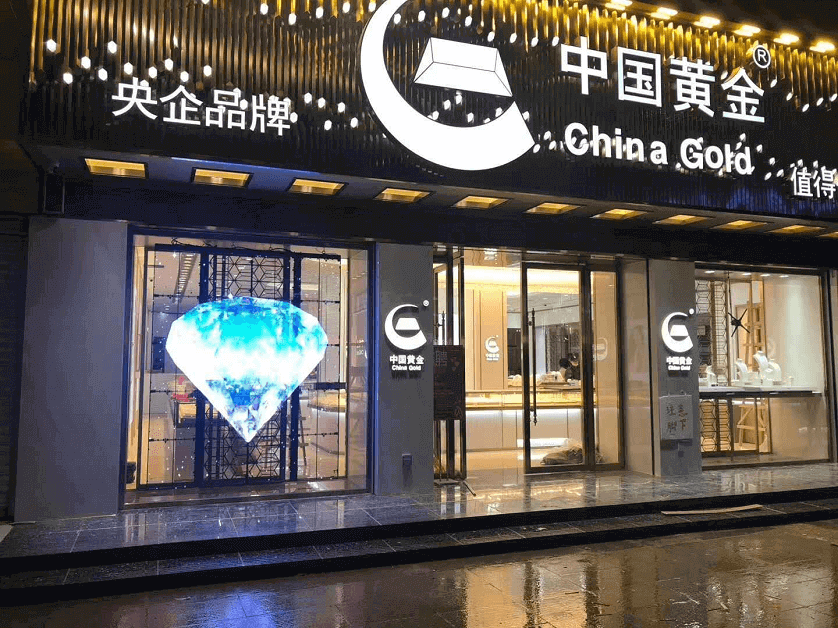

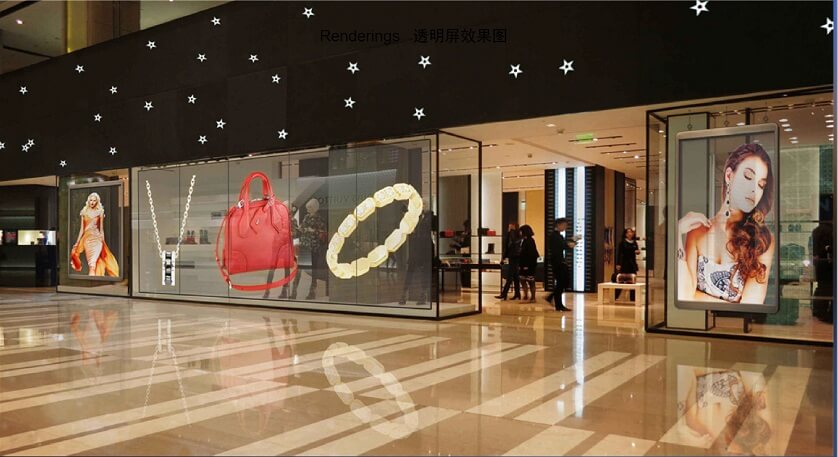

It is used for shopping malls, mobile phone shops, retail chain stores, window glass led display, Auto 4S shops, etc. Clear series is the right one to choose if you need to make the light come through inside of the building while displaying the LED advertising.
Product features:

Super thin&light weight: less than 10kg/m2 and can be arbitrary stitching.

High transparency&brightness: more than 5000nits with invisible wire design.

Save labor cost: quickly open and close the power box with one hand.

Equipped with quick plug-in parts, convenient for the event.

Customised cabinet sizes to meet different project needs.

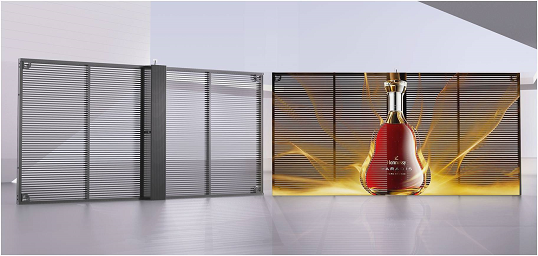

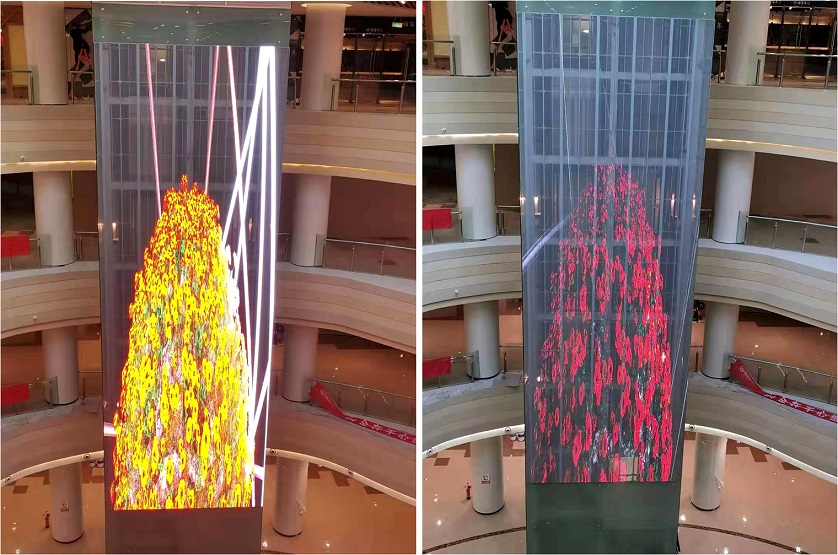

Higher Transparency and Infinite Possibilities

Clear series is 70-90% transparency with unique see-through technology. Our transparent led video wall makes a neat and clear appearance.

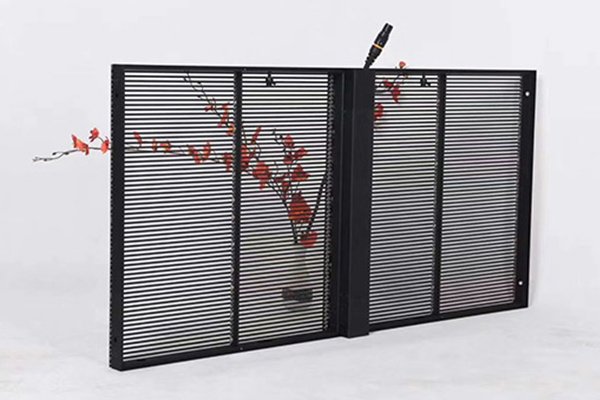

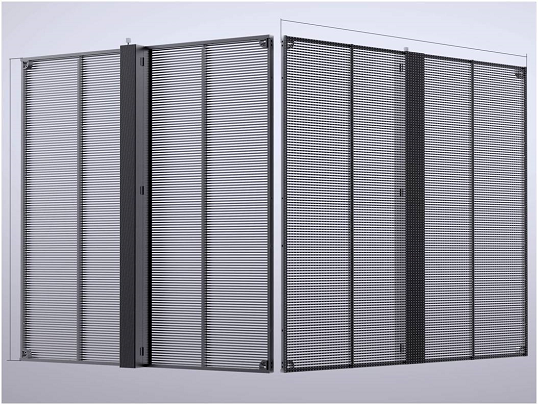

Slim and Lightweight Design

Our transparent led screen is 500×1000mm and 1000×1000mm standard cabinet design with simple and practical appearance. The weight is only 10kg/㎡ and ultra-thin aluminum cabinet is 61mm thickness.

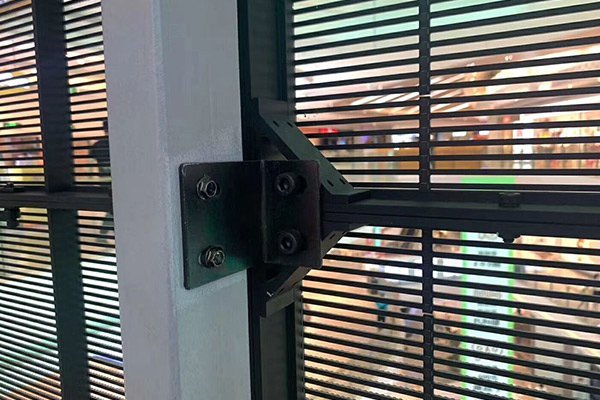

Fast Installation and Maintenance

Clear series supplies standard and integrated cabinet for fast and easy installation. Fast lock is able for cabinet quick connection and save installation time and cost. Our transparent led video wall also supports front maintenance.

Modular design

Easy for maintenance, modules can be individually replaced to reduce maintenance costs.

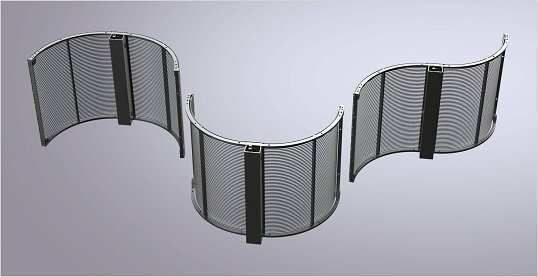

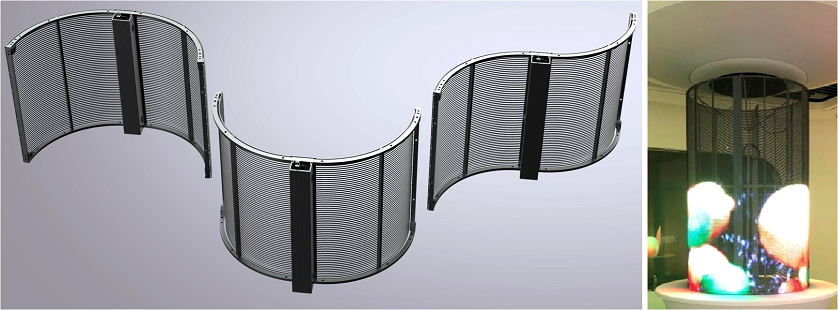

Flexible Frame Design

Clear series supports custom made shapes and solutions for transparent led screen, such as cylinder, concave&convex, cube and irregular shapes etc.

High Brightness

Clear series have 800-5500 nits brightness level according to different applications for transparent led video wall. Customers can choose the proper one for projects with cost-saving and right solution. Brightness sensor is also available for self-adjustment at day and night.

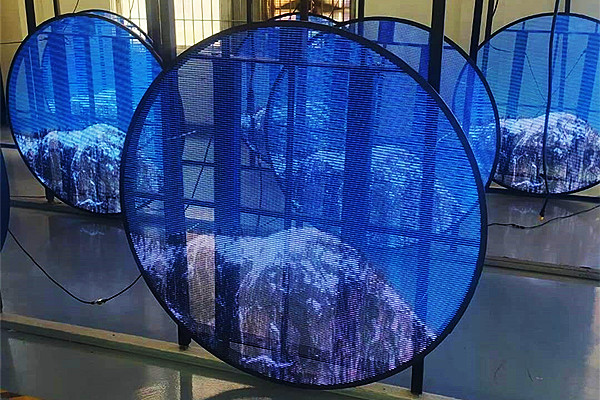

Creative Shapes and Flexible Sizes

Clear series is able to be creative and custom made shapes. It's also available for flexible sizes, such as 0.8m, 1m, 1.4m, 1.5m, 2m and 6m diameter for round shape transparent led display.

Application

Video & Specification

To ensure that you find the correct solution, please download the specification

Transparent LED Screen-Clear Series

ITEMP2.6/5.2P2.8/5.6P3.9/7.8P10.4
Pixel PitchHorizontal 2.6mm
Vertical 5.2mm
Horizontal 2.8mm
Vertical 5.6mm
Horizontal 3.9mm
Vertical 7.8mm
10.416mm
LED Lamp ModelSMD1921SMD1921SMD1921SMD2727
Brightness (nits)3500-5500nits3500-5500nits3500-5500nits3500-5500nits
Cabinet Size (W*H)1000x500/1000mm1000x500/1000mm1000x500/1000mm1000x500/1000mm
Cabinet Weight (kg/m2)10kg10kg10kg10kg
Cabinet Resolution (W*H)384x96/192352x88/176256x64/12896x48/96
Density of Pixels (pixels/m2)73,728 pixels61,952 pixels32,768 pixels9,216 pixels
Cabinet MaterialAluminum
Protection LevelIP30/IP30
Viewing Angle (degree)140/140
Operating Environment-20~+50℃ 10%-90% RH
Refresh Rate1920/3840Hz
Gray Scale14 bit
Signal InputDVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage100-240V AC 50~60Hz
Service Life100000Hours
Maximum Power (W/m2)780W/㎡800W/㎡800W/㎡780W/㎡
Average Power (W/m2)260W/㎡220W/㎡220W/㎡220W/㎡
Maintenance WayFront&Rear
