1600x900mm Aluminum Stadium Perimeter System (PU Series)

1600x900mm Aluminum Stadium Perimeter System (PU Series)

PU Series:

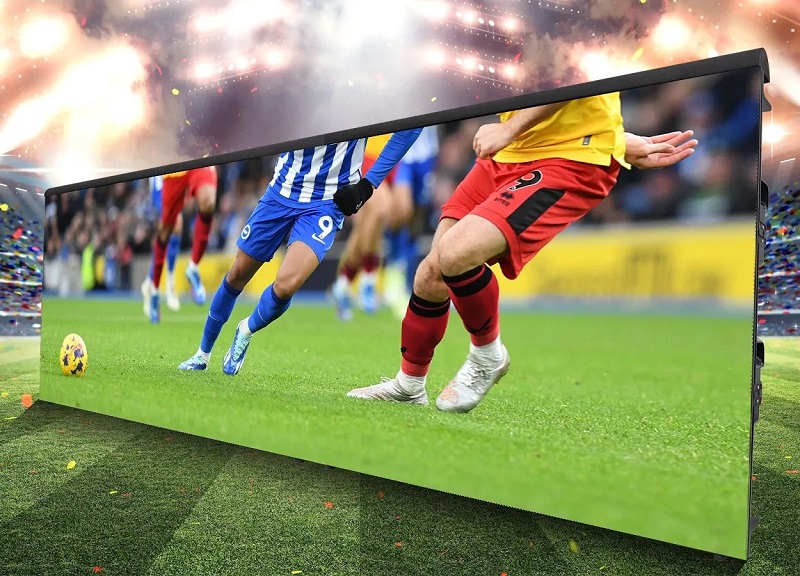

The 1600x900mm aluminum perimeter LED screen features a safety design that meets UEFA standards, ensuring secure and reliable performance for stadium.

Product features:

Soft mask and top cover to protect the players.

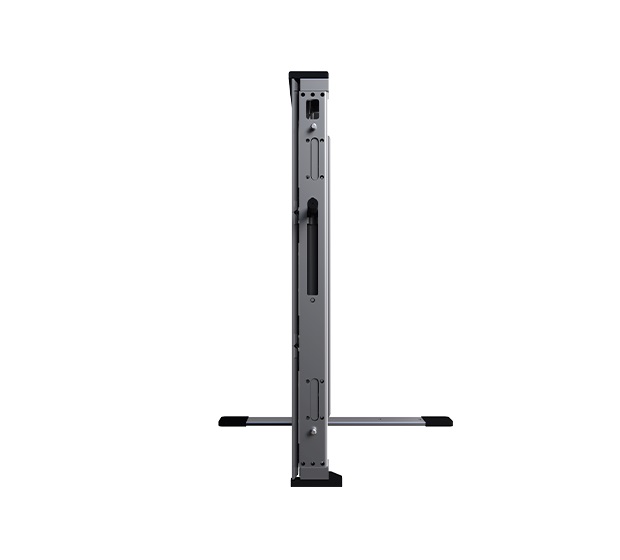

Back support to make it could stand alone.

High refresh rate to record clear in the professional camera.

Waterproof with lP65, wide view angle.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

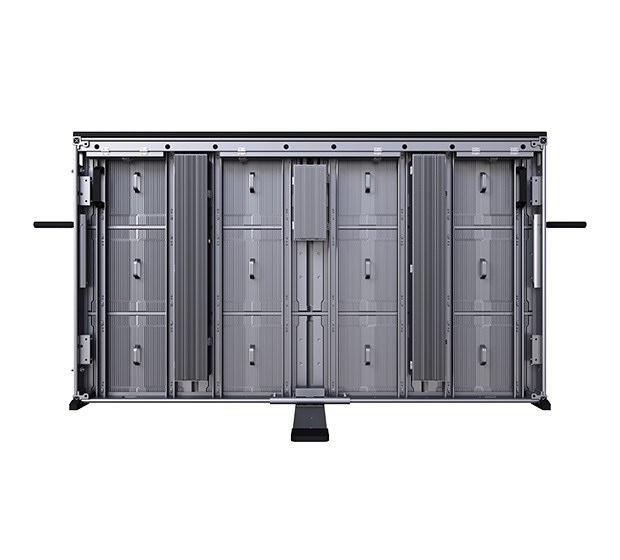

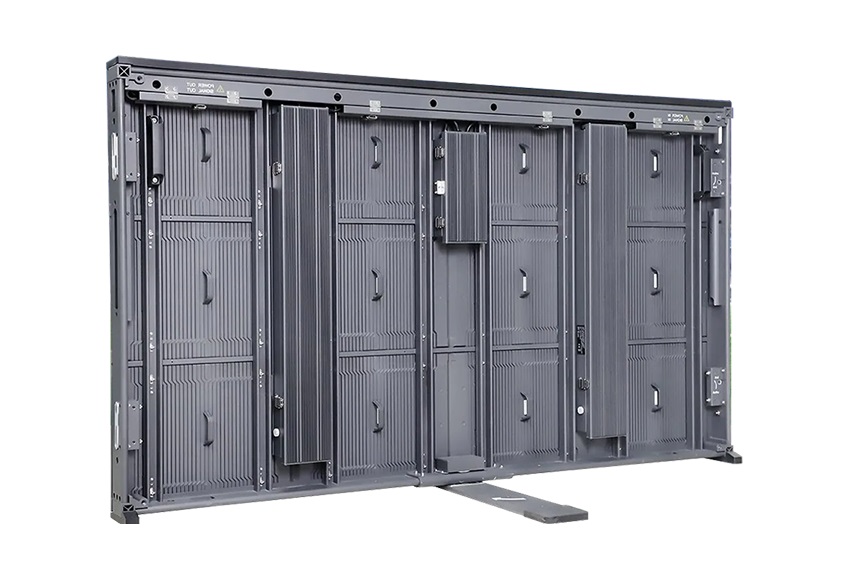

16:9 Design, Light Weight With Full Aluminum Cabinet

Panel size: 1600900101mm 45Kgs per sqm, 30% lighter and normal iron cabinet, saving labor cost and shipping cost; High precision CNC Processing, high flatness.

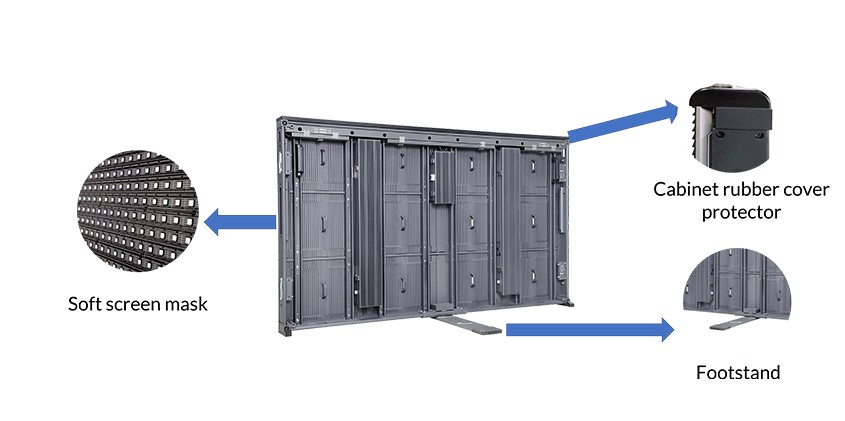

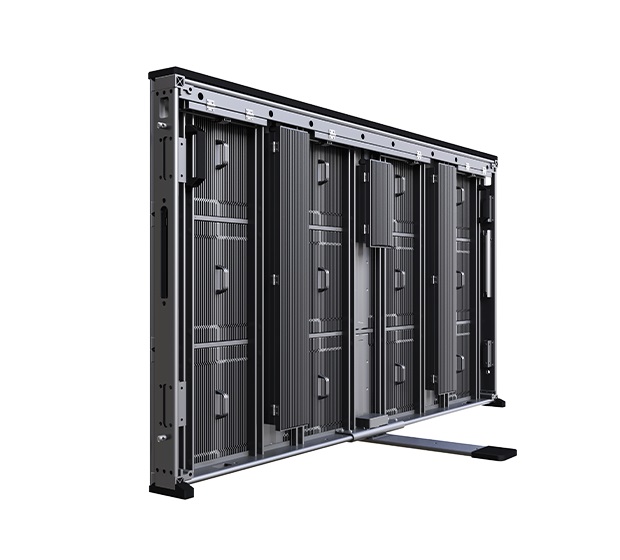

Humanization Design, Impact Protection

3-layer slope design soft screen mask,efficient impact buffering and rain draining; cabinet rubber cover protector, protect the athletes in case of impact; Designed footstand with rubber protector, safe and stable.

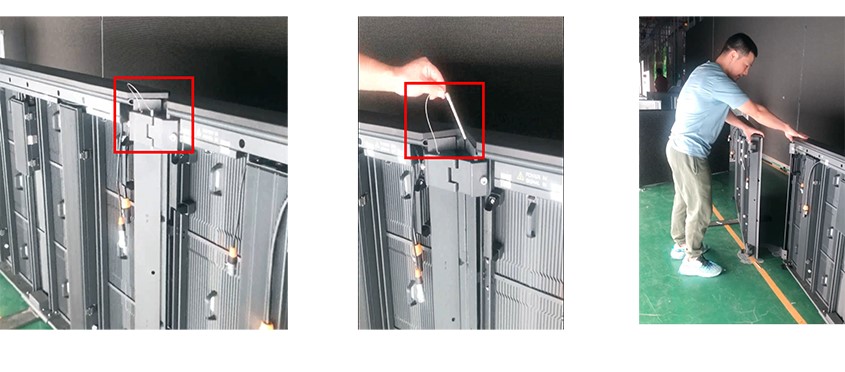

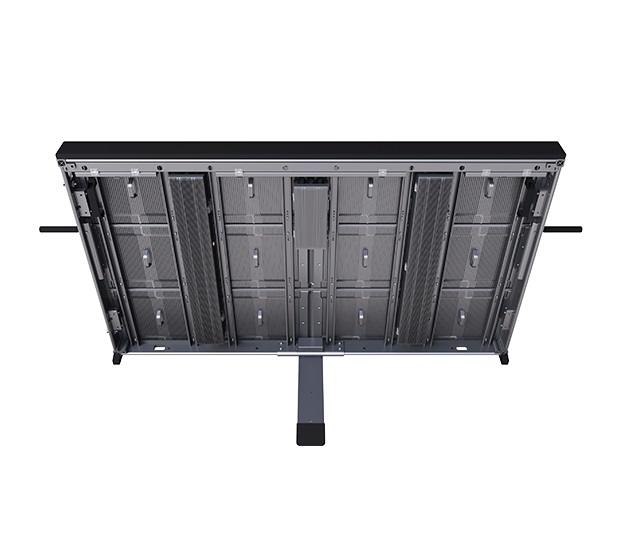

Emergency Access Provision

Special bolts design to support to remove two cabinets easily for exit in case of emergency, this is necessary for quick and easy escape required by most football associations.

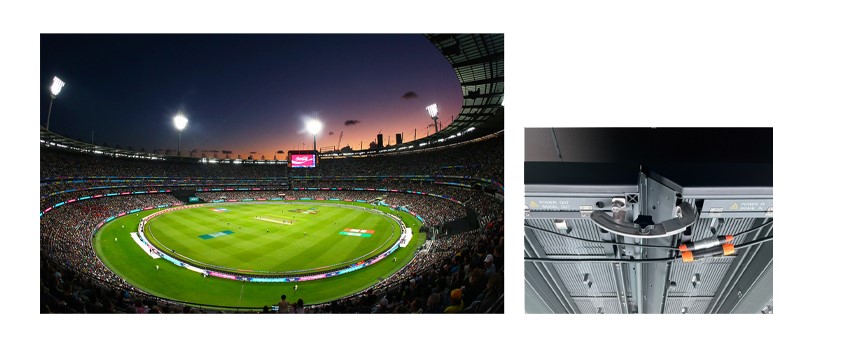

Curved Splicing Optional

Curved splicing available , creating special display effects as requested of the stadium.

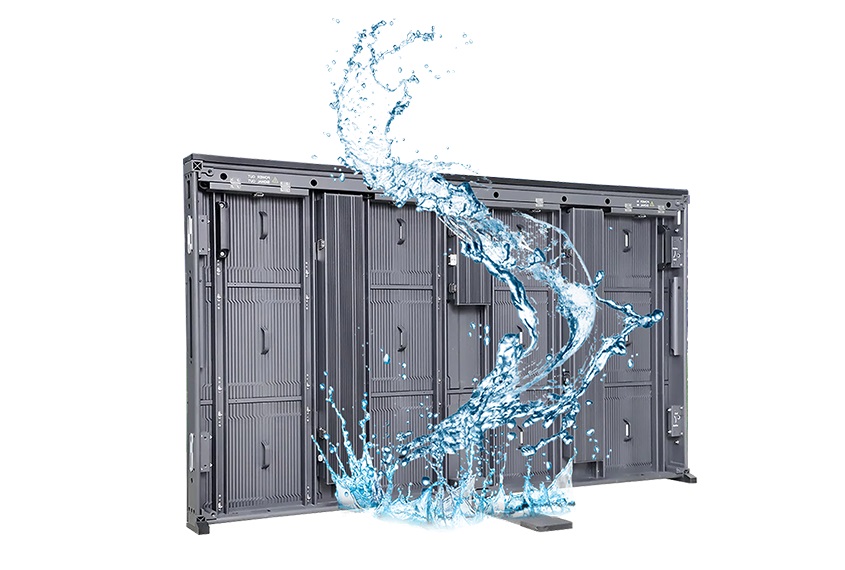

High Protective Grade Front IP68/ Rear IP66

PU series adopts high quality conformal coating, so the component is effectively moisture-proof and dust-proof. Therefore, the screen can be used in severe indoor and outdoor environments.

Large Viewing Angle

SMD lamps offer 160/160 degree viewing angle.

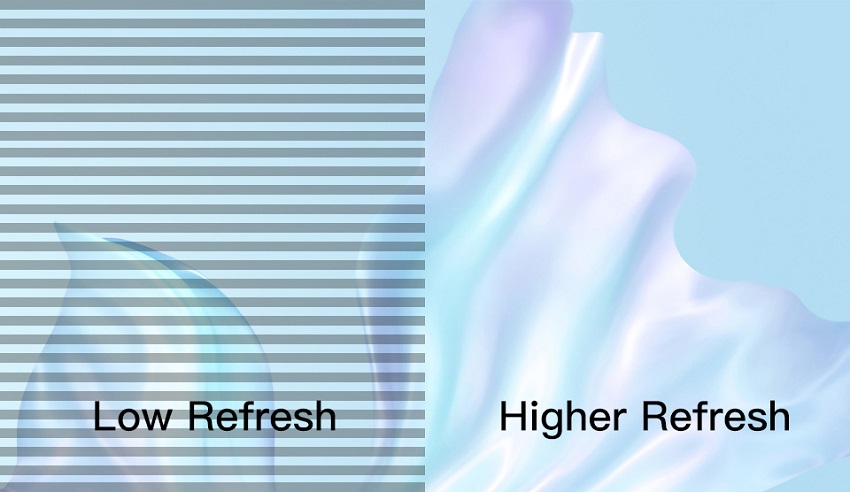

7680 High Refresh Rate

PU series provides 7680 Hz refresh rate, making the display quality more stable when the image is captured by camera.

Application

it is used for a lot of sports games, indoor: basketball, volleyball, indoor football, ice hockey games, skating games, badminton, gymnastics. Outdoors include football, triathlon etc.

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

Stadium LED Perimeter screen (PU Series)

ITEM	P4	P6.67	P8.3	P10
Pixel Pitch	4mm	6.67mm	8.3mm	10mm
LED Lamp Model	SMD1921	SMD2727	SMD3535	SMD3535
Brightness(nits)	5500-6500nits	5500-8500nits	5500-10,000nits	5500-10,00nits
Cabinet Size (W*H)	1600x900mm
Cabinet Weight (kg/cabinet)	45kg	45kg	45kg	45kg
Cabinet Resolution (W*H)	400x225	240x135	192x108	160x90
Density of Pixels (pixels/m2)	62,500 pixels	22,500 pixels	14,400 pixels	10,000 pixels
Cabinet Material	Aluminum alloy
Protection Level	Front IP68 / Rear IP66
Viewing Angle (degree)	H.170° / V.110°
Operating Environment	-20~+60℃ 10%-90% RH
Refresh Rate	3840Hz
Gray Scale	14 bit
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	630W/㎡	630W/㎡	550W/㎡	550W/㎡
Average Power (W/m2)	250W/㎡	250W/㎡	200W/㎡	200W/㎡
Maintenance Way	Front & Rear
