Concave & Convex Curves Soft Led Display (S Series)

Concave & Convex Curves Soft Led Display (S Series)

S Series:

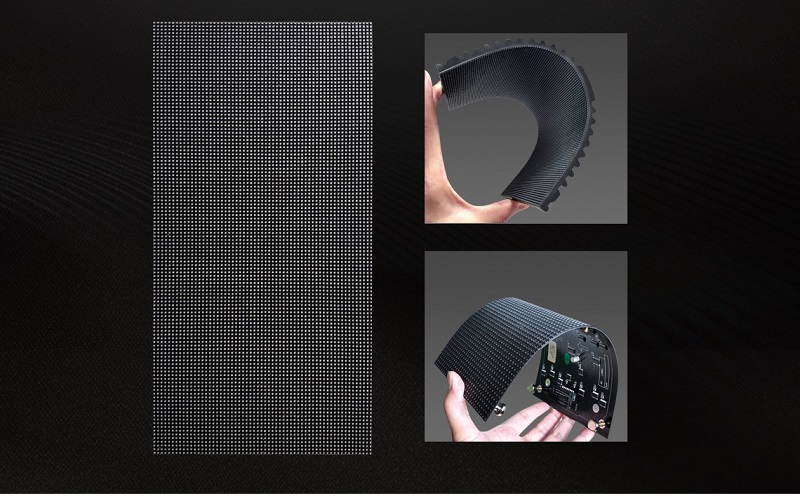

Flexible led display has a creative look and feel compared to a conventional LED display screen. Made from soft PCB and rubber material, Flexible led displays are perfect for creative design &amp;amp; solution such as curved, circles, spheres and wave shapes etc.

Product features:

Easily build concave & convex curves.

Front& rear serviceability with magnet design.

Super thin design, only 0.21kg/module.

Custom frames and sizing.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

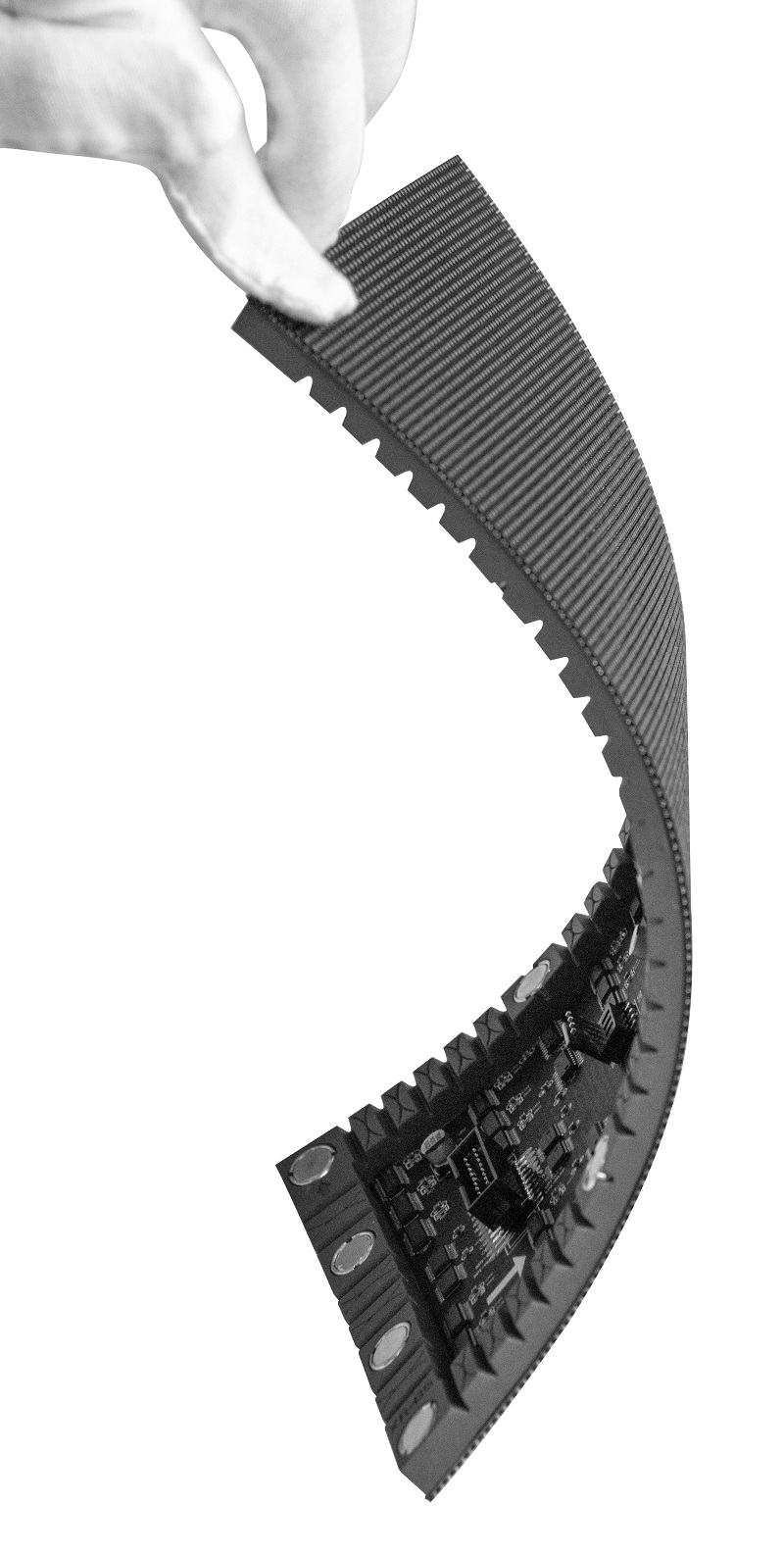

360 Degree Bendable

Flexible led display module is soft and curved. Popular with curved and cylinder shapes for flexible led screen. Thanks for its 360 degree bendable design, it can be any creative and custom shapes for tailored solutions.

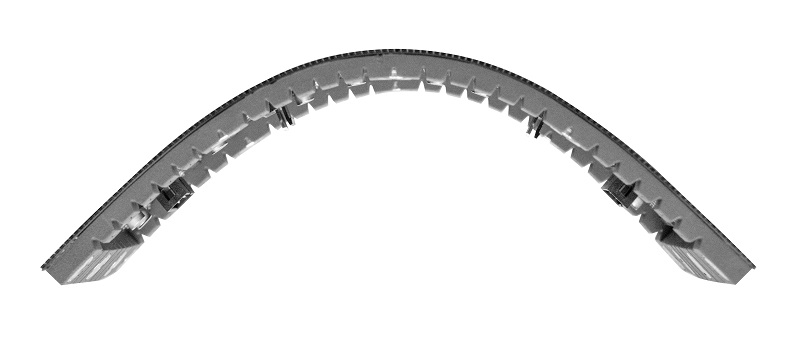

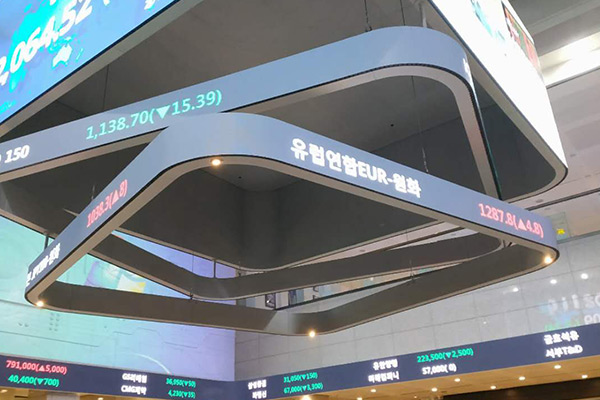

Ultra Thin & Extremely Light

Our S series flexible led module is only 0.21kg for one component. The ultra-slim body makes the whole screen beautiful and cost-saving. Available for hanging installation.

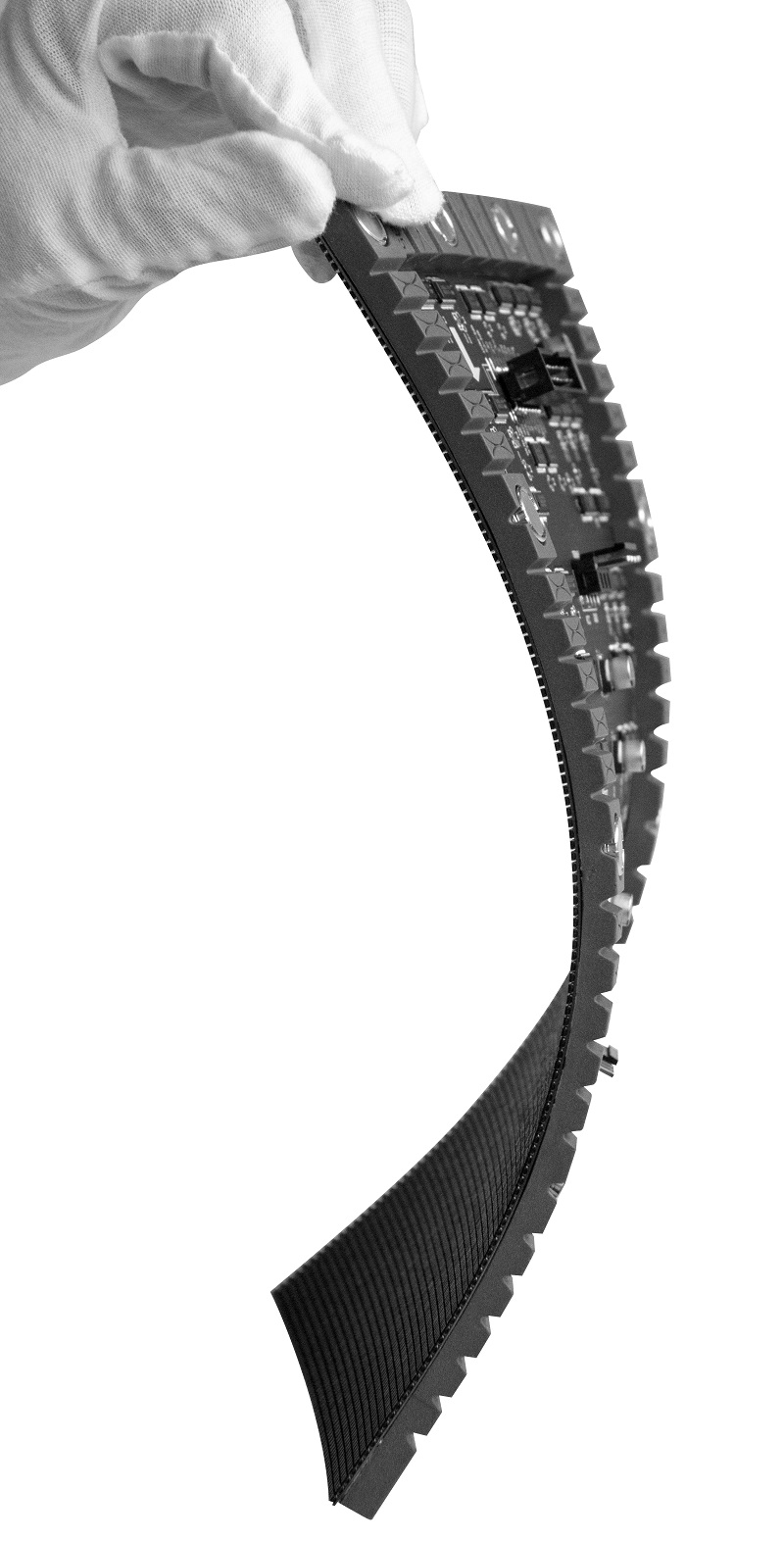

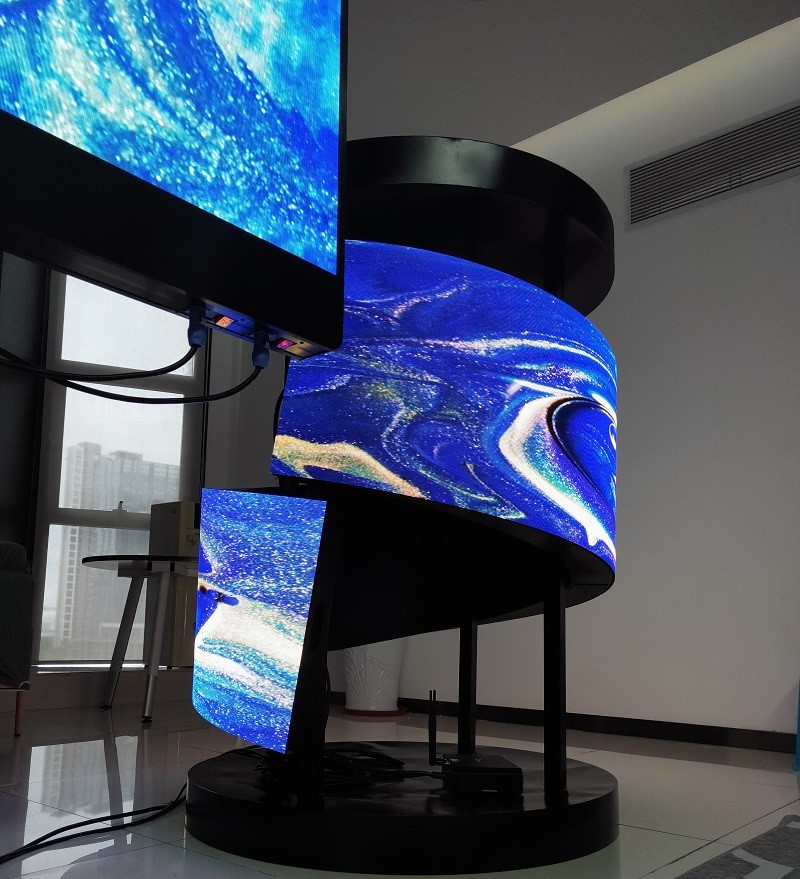

Perfect Flatness & Good Contrast

Flatness could be adjusted with our flexible led screen. Excellent visual performance with high refresh rate, High quality video & picture for S series flexible led display wall.

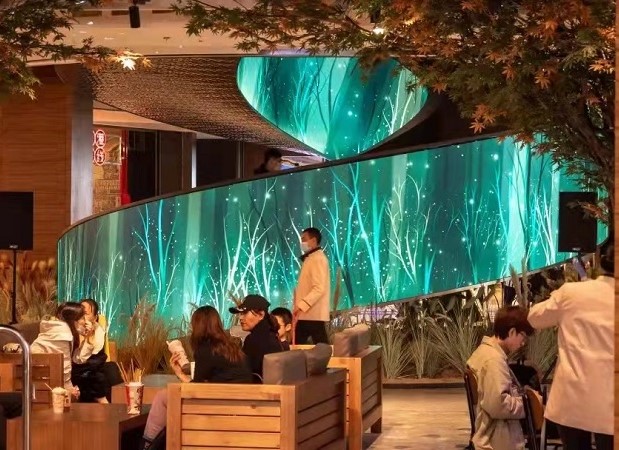

Easy Installation & Maintenance

Fast & easy installation with our unique seamless splicing technology. Front maintenance is available with 12-18 magnetics per flexible led module.

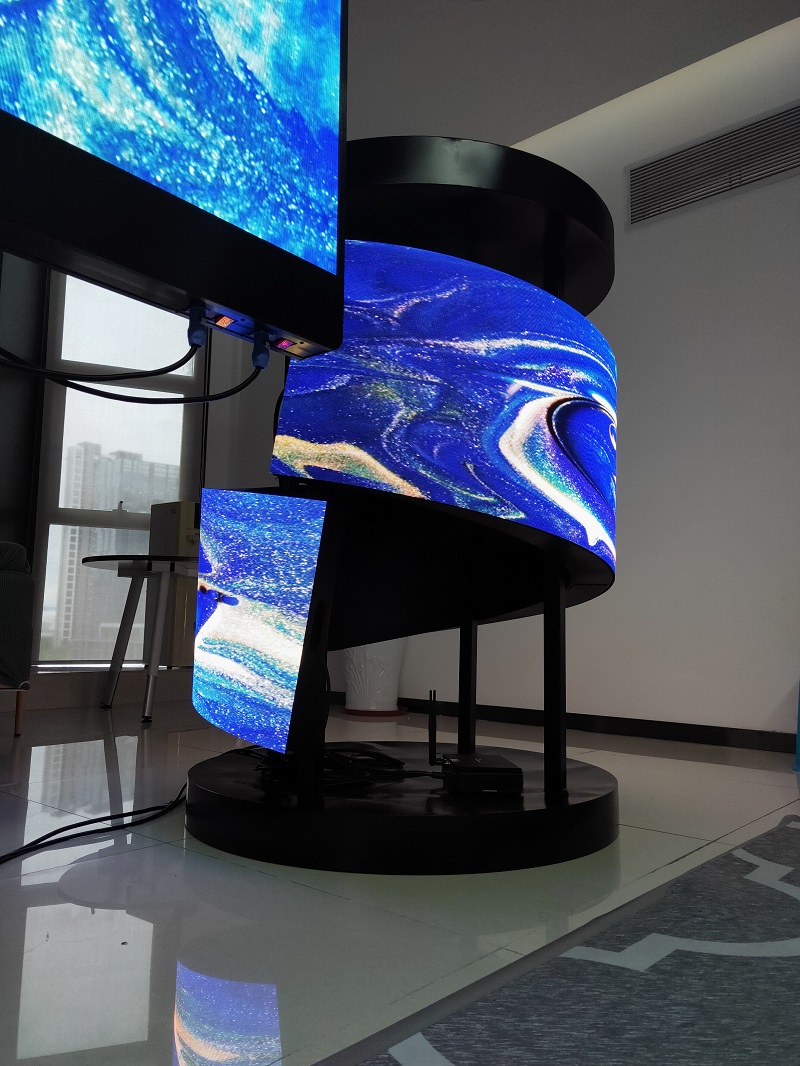

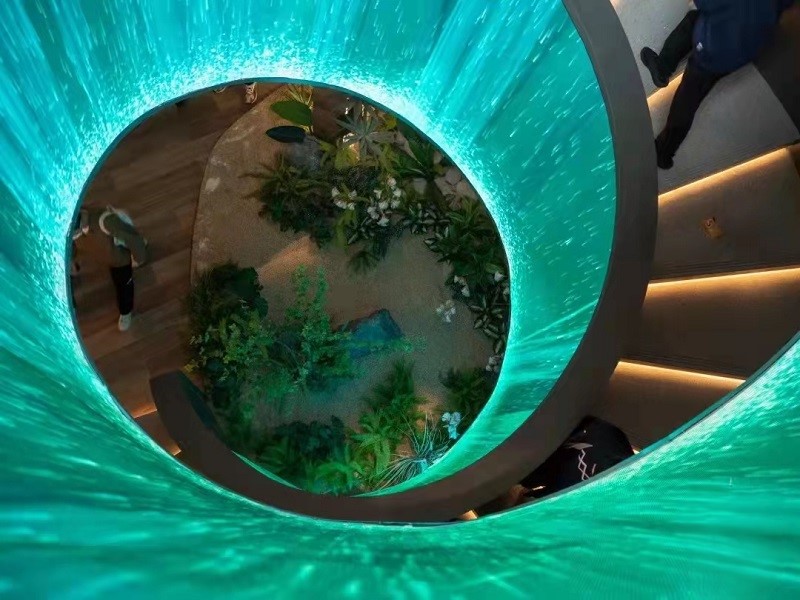

Tailored Design & Solution

Module with small unit and flexible design to do more complicated shapes for the video show. Creative design & solution for cylinder-shape, S-shape, wave-shape, sphere shape etc. This soft led display can be based on customer needs, design scrolling, bend, and swing a variety of effects. No cabinet metal frame, drastically deducting the screen weight.

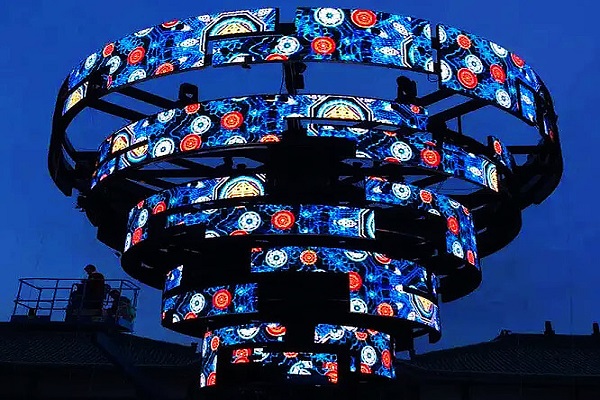

Outdoor Flexible LED Screen

S series are available for outdoor version. It's totally waterproof with IP68 protection and high bright. There's more possibilities with our outdoor flexible led screen module for outdoor creative applications.

Application

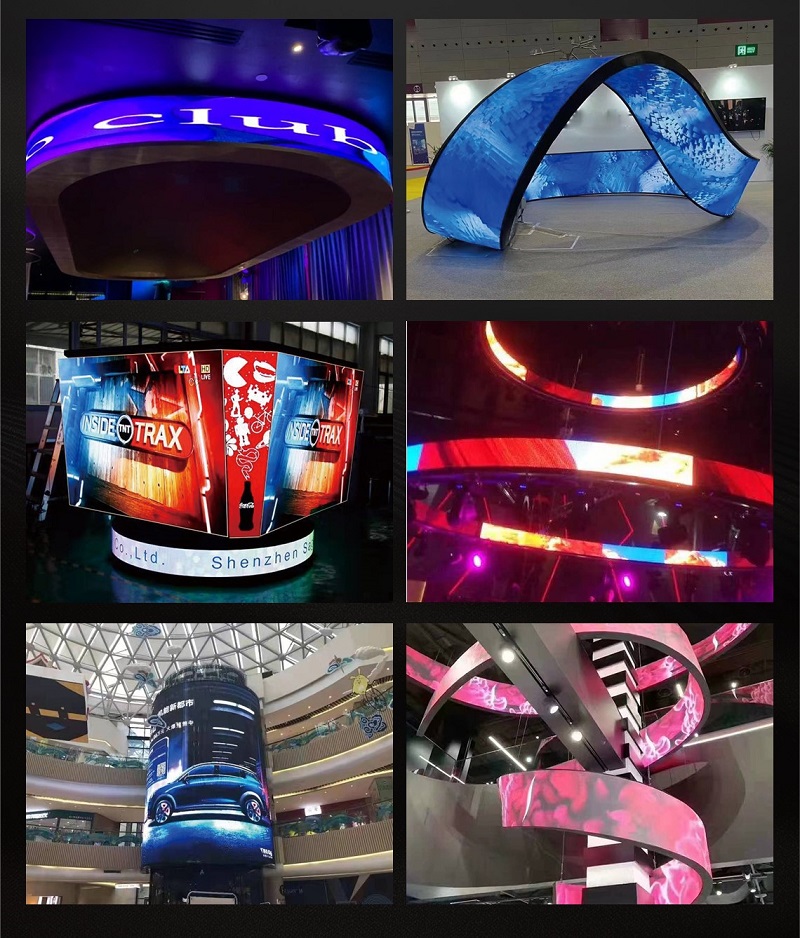

S series is highly flexible, you can use our flexible LED modules to build creative LED screens in many shapes, such as curved LED walls, cylindrical LED displays, wavy LED screens, irregular-shaped LED signs, spherical LED displays, etc.

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

Creative LED Screen-S Series

ITEM	P1.2	P1.5	P1.8	P2.5	P4
Pixel Pitch	1.25mm	1.579mm	1.875mm	2.5mm	4mm
LED Lamp Model	SMD1010	SMD1212	SMD1212	SMD1515	SMD2020
Brightness(nits)	600nits	600nits	1000nits	1000nits	1000nits
Module Size (W*H)	240x120mm	240x120mm	240x120mm	240x120mm	240x120mm
Module Weight (kg/module)	0.21kg	0.21kg	0.21kg	0.21kg	0.21kg
Module Resolution (W*H)	192x96	152x76	128x64	96x48	60x30
Density of Pixels (pixels/m2)	640,000 pixels	401,111 pixels	284,444 pixels	160,000 pixels	62,500 pixels
Module Material	Silicon Rubber Soft Bracket
Protection Level	IP43
Viewing Angle (degree)	160/160
Operating Environment	-20~+50℃ 10%-90% RH
Refresh Rate	3840Hz
Gray Scale	14 bit
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	650W/㎡	650W/㎡	700W/㎡	700W/㎡	650W/㎡
Average Power (W/m2)	210W/㎡	210W/㎡	260W/㎡	230W/㎡	420W/㎡
Maintenance Way	Front&Rear
