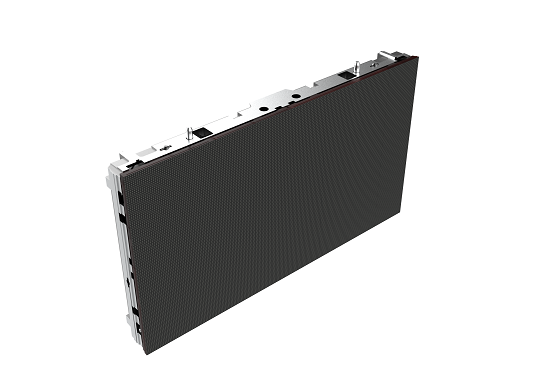

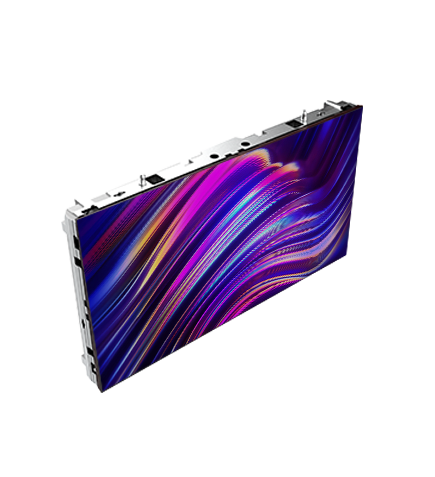

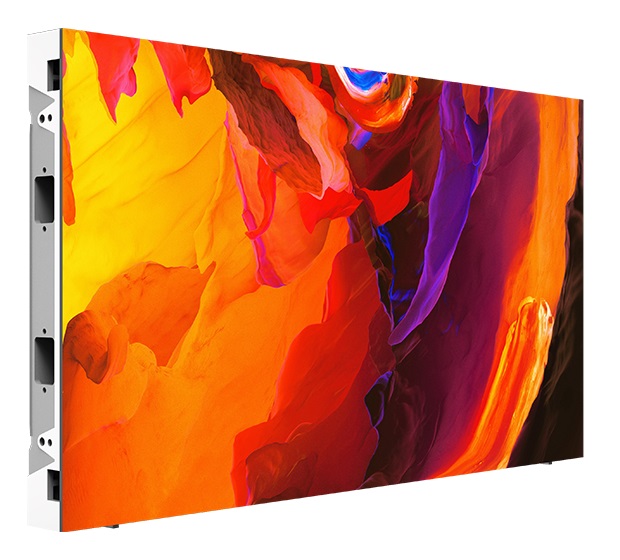

Flip-chip COB 16:9 Micro LED Display (Micro Series)

Flip-chip COB 16:9 Micro LED Display (Micro Series)

Micro Series:

Micro series adopts the latest COB LED display technology, providing a stronger and more reliable connection, ultra-light and ultra-thin body design, front maintenance, and easy installation and maintenance.

Product features:

Golden ration 16:9, easily splicing 2K/4K/8K screen.

Ultra light and slim thickness only 39mm.

Full front and rear service.

Simple installation without steel structure.

Modular design with wireless connection.

Wide view angle.

High heat dissipation efficiency.

No fan, no noise.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

Perfect 16:9 Led Display

The 4K LED display is composed of many 16:9 LED cabinets 600×337.5mm. The resolution can reach 3840×2160, without any stitching and gaps, the most significant feature that distinguishes it from 4K LCD screen is that it can be large in size. The colors are more natural, to bring the real content to life.

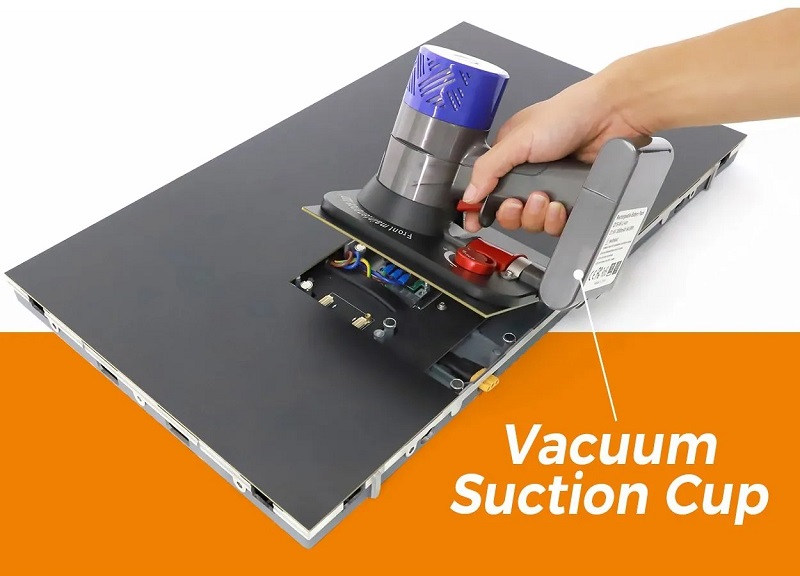

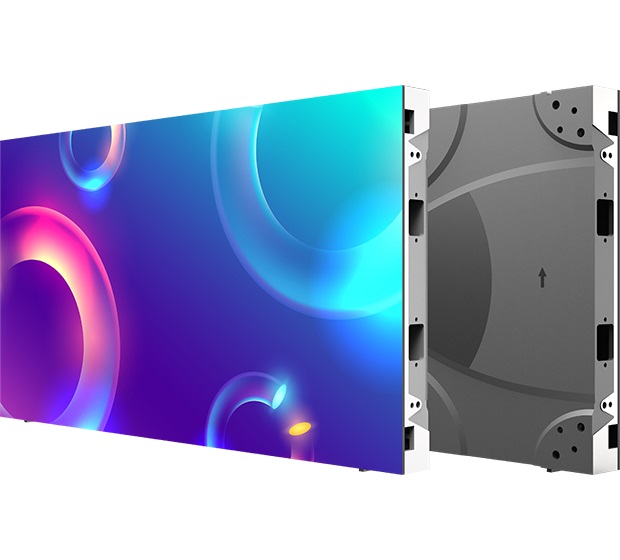

Full Front Maintenance Design for Easy Installation

Due to the ultra-light weight of the panels, they can be installed directly on wooden or concrete walls, and all parts are serviceable from the front.

High Protection Package Technology with Full Flip-chip COB Design

Waterproof, dustproof and super durability and reliability combined with lower power consumption for an overall improved experience for customers.

High Dynamic Range (HDR) Support

Experience vivid colors and lifelike contrast with enhanced brightness and shadow detail, delivering a captivating visual experience for our customers.

Perfect Grayscale Transition

Our Micro series delivers superior color reproduction, lossless image quality and maintains high consistency in black color representation.

Application

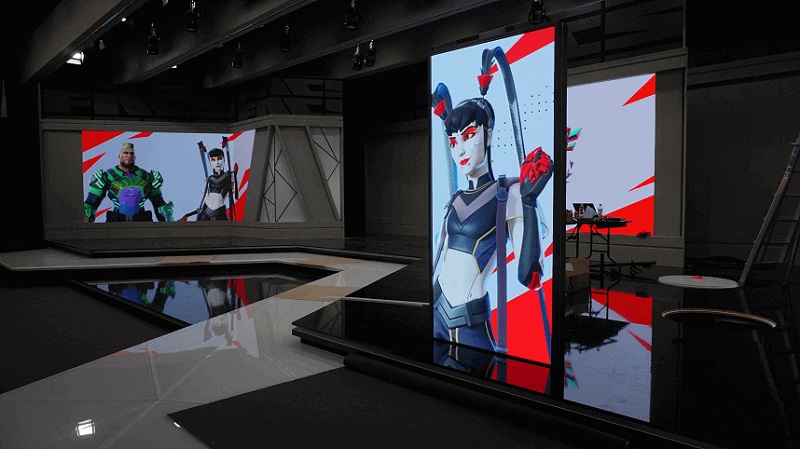

Our Micro series is ideal for applications requiring ultra-fine image quality and exceptional detail, including conferences, TV studios, traffic control and monitoring centers, medical facilities, and other environments demanding superior display performance. (P0.9mm for Epic Games).

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

Small pixel pitch-Micro Series

ITEM	P0.9	P1.2	P1.5	P1.8	P2.5
Pixel Pitch	0.9375mm	1.250mm	1.5625mm	1.875mm	2.5mm
LED Lamp Model	Flip-chip COB	Flip-chip COB	Flip-chip COB	Flip-chip COB	Flip-chip COB
Brightness (nits)	500nits	800nits	800nits	800-1000nits	800-1000nits
Cabinet Size (W*H)	600x337.5mm	600x337.5mm	600x337.5mm	600x337.5mm	600x337.5mm
Cabinet Weight (kg/cabinet)	5.8kg	5.8kg	5.8kg	5.8kg	5.8kg
Cabinet Resolution (W*H)	640x360	480x270	384x216	320x180	240x135
Density of Pixels (pixels/m2)	1,137,777 pixels	640,000 pixels	409,600 pixels	284,444 pixels	160,000 pixels
Cabinet Material	Die-casting Aluminum
Protection Level	IP30/IP30
Viewing Angle (degree)	160/160
Operating Environment	-20~+50℃ 10%-90% RH
Refresh Rate	1920/3840Hz
Gray Scale	14 bit
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	630W/㎡	660W/㎡	640W/㎡	680W/㎡	580W/㎡
Average Power (W/m2)	210W/㎡	231W/㎡	224W/㎡	238W/㎡	203W/㎡
Maintenance Way	Front
