Outdoor Fixed Transparent LED Display (FT Series)
Outdoor Fixed Transparent LED Display (FT Series)
Outdoor Fixed Transparent LED Display (FT Series)
Outdoor Fixed Transparent LED Display (FT Series)
Outdoor Fixed Transparent LED Display (FT Series)
Outdoor Fixed Transparent LED Display (FT Series)
Outdoor Fixed Transparent LED Display (FT Series)
Outdoor Fixed Transparent LED Display (FT Series)

Outdoor Fixed Transparent LED Display (FT Series)

FT Series:
FT series use in the extremely environment, realizing the exact water-proof, moisture-proof, anti-collision/UV/dust and avoiding the Led Lens dropping phenomenon.
Product features:

Ultra-light: only 7.5kg in weight, it can be single-handed and the installation is very easy.

Ultra-thin: with die-cast aluminum, strong toughness, no deformation, good heat dissipation.

Compatible: new structural design to meet lifting, stacking, indoor and outdoor requirements.

Cost: light weight, low logistics costs, low power consumption, saving operating costs.

Remarkable Visual Performance and Higher Transparancy

Selecting ultra-high refresh rate IC and high-quality Led chip, wide viewing angle,replay the remarkable visual performance.

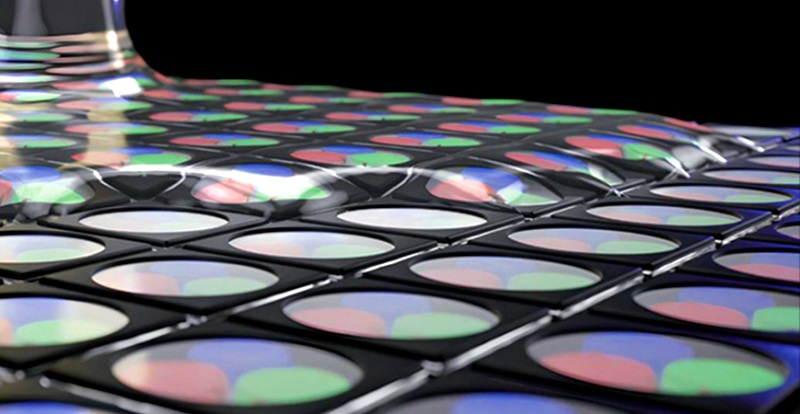

GOB High Protection Transparent LED Display

IP65 and anti-crash, no need for acrylic glass, GOB technology can reduce the rate of dead pixels during transportation and installation, less maintenance cost.

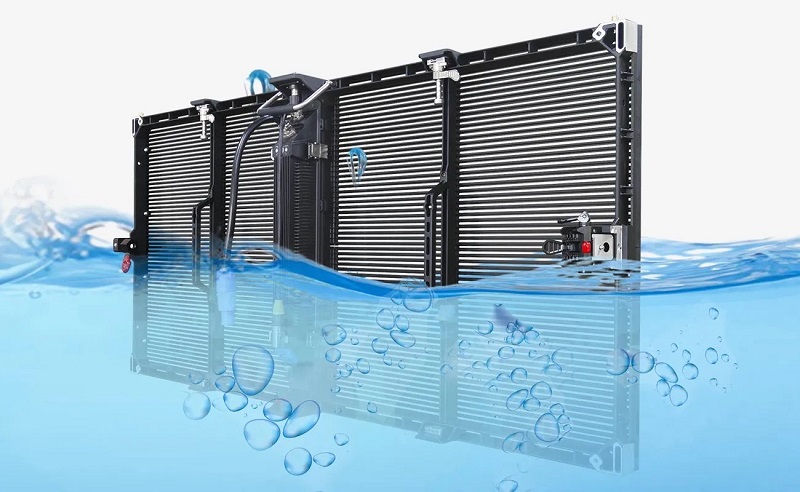

IP65 Dustproof and Waterproof

High waterproof performance waterproof rating IP65. It’s for outdoor application. It can resist some bad weather during outdoor events.

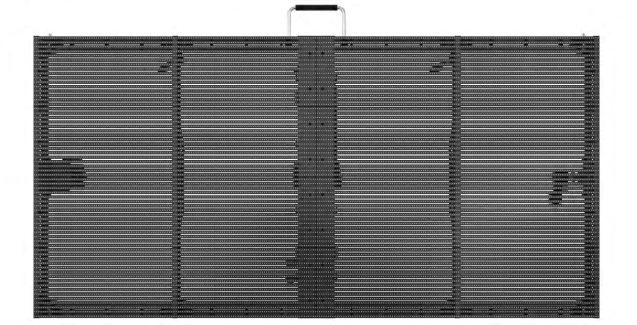

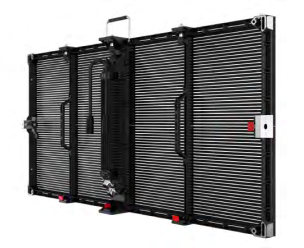

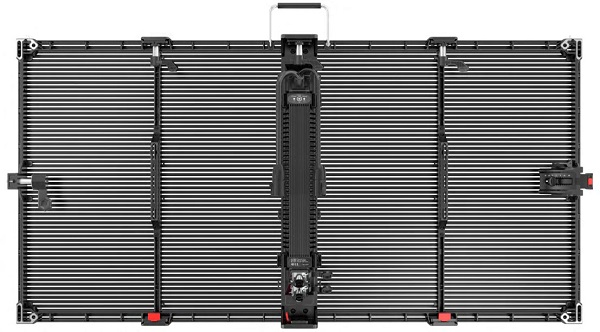

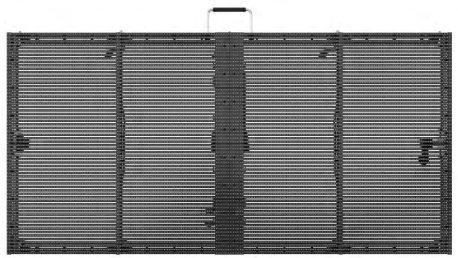

1000x500mm Lightweight cabinet

Die-cast aluminum cabinet, transparent structure, the weight is only 7.5kg/pcs, thickness is 80mm.

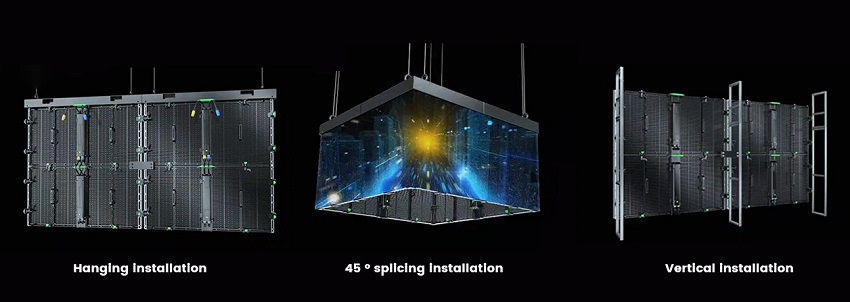

Easy to Install

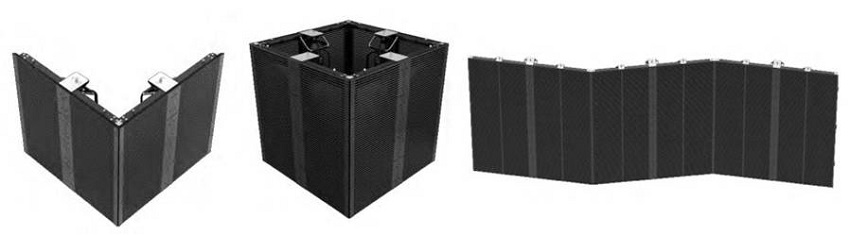

Stacking, hanging and fixed installations are supported, convex, concave, cube etc is also available.

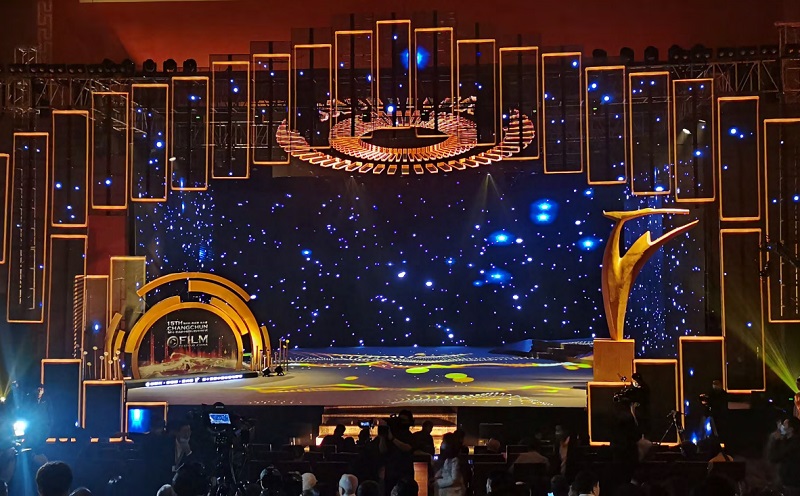

Super Wide Viewing Angle

Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

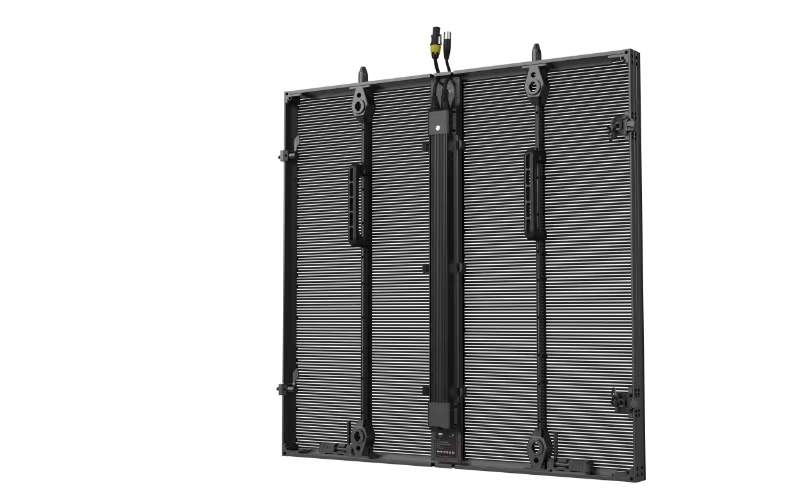

New 1x1meter Outdoor Transparent LED Cabinet (Optional)

Weight of only 16.5 kg per sqm, brightness of up to 4800 nits, IP65, stable and robust frame, indoor and outdoor capable, up to 15 degrees concave and convex possible, P3.9-7.8, P5-10, P10 are available.

Application

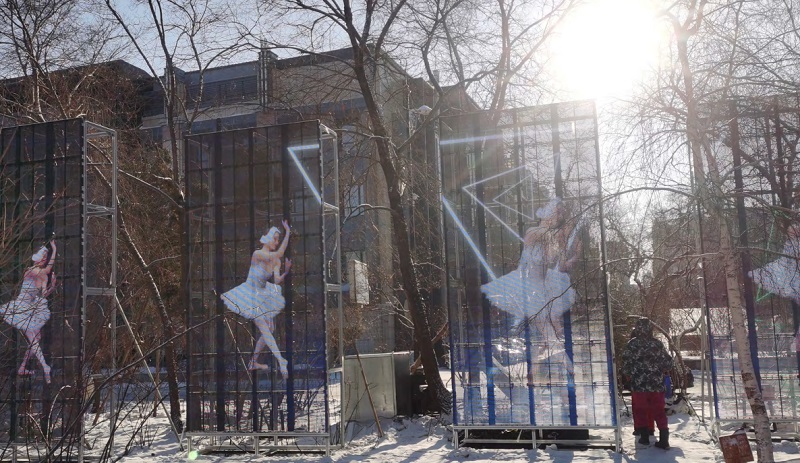

P3.9-7.8mm, 80sq.m, located in Harbin, China with avg minus 25 centigrade degree in winter.

Video & Specification

To ensure that you find the correct solution, please download the specification

Transparent rental-FT Series

ITEMP2.6/5.2P2.8/5.6P3.9/7.8P10.4
Pixel PitchHorizontal 2.6mm
Vertical 5.2mm
Horizontal 2.8mm
Vertical 5.6mm
Horizontal 3.9mm
Vertical 7.8mm
Horizontal 10.4mm
Vertical 10.4mm
LED Lamp ModelSMD1921SMD1921SMD1921SMD2727
Brightness(nits)3500-5500nits3500-5500nits3500-5500nits3500-5500nits
Cabinet Size (W*H)1000x500mm1000x500mm1000x500mm1000x500mm
Cabinet Weight (kg/cabinet)7.5kg7.5kg7.5kg7.5kg
Cabinet Resolution (W*H)384x96352x88256x6496x48
Density of Pixels (pixels/m2)73,728 pixels61,952 pixels32,768 pixels9,216 pixels
Cabinet MaterialDie-casting Aluminum
Protection LevelIP65
Viewing Angle (degree)140/140
Operating Environment-20~+50℃ 10%-90% RH
Refresh Rate1920-3840Hz
Gray Scale14 bit
Signal InputDVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage100-240V AC 50~60Hz
Service Life100000Hours
Maximum Power (W/m2)780W/㎡800W/㎡800W/㎡800W/㎡
Average Power (W/m2)260W/㎡220W/㎡220W/㎡220W/㎡
Maintenance WayFront & Rear
