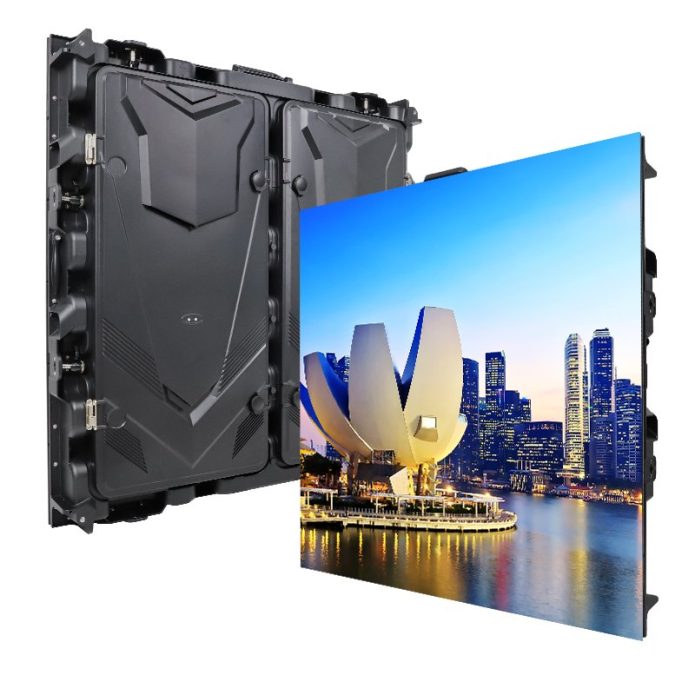

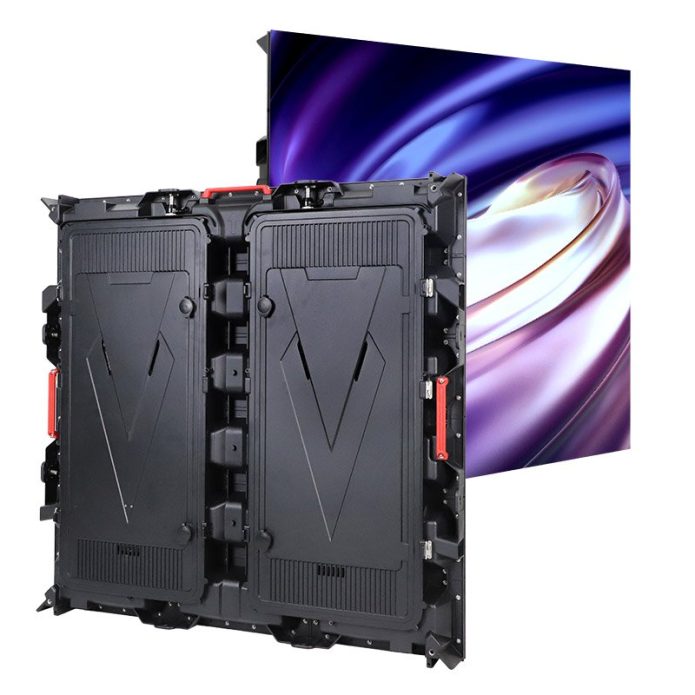

Front & Rear Maintenance Outdoor LED Billboard (OD Series)

Front & Rear Maintenance Outdoor LED Billboard (OD Series)

OD Series:

IP65 rated waterproof and dustproof, full color outdoor Led Screen.

Product features:

Stable and durable.

Support front & rear service.

Diecasting aluminum cabinet and great heat dissipation.

Near-seamless connection with a gap less than 0.1mm.

Lightweight cabinet.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

Born For Outdoor Advertisements

Full color, near seamless Die-casting aluminum cabinet, which is strong and durable. This LED display can be used for both indoor and outdoor applications, including fixed installations and rentals.

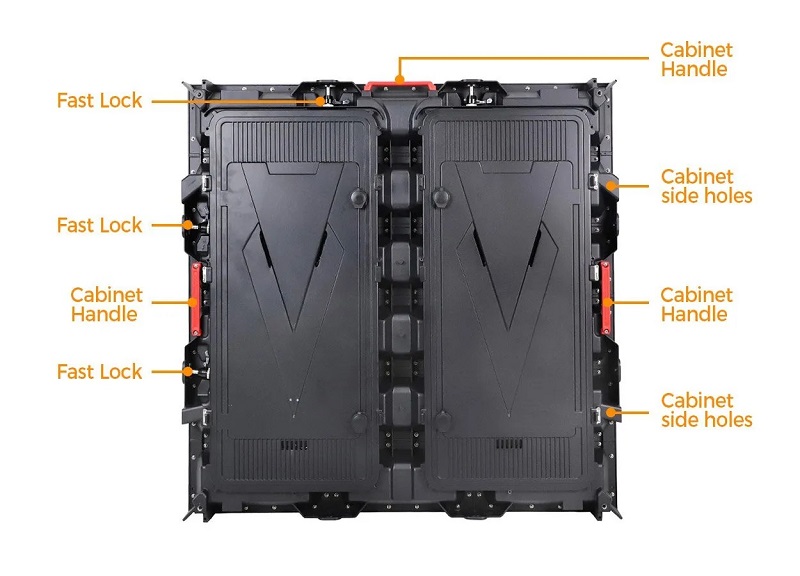

Quick Assembly

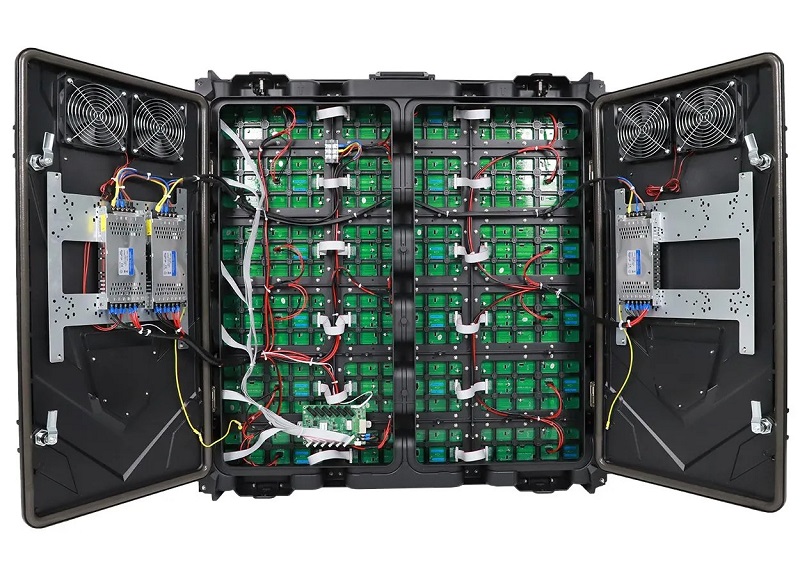

OD series is equipped with three handles for easy movement. Four quick locks make connections faster, and the back cover can be opened for maintenance operations.

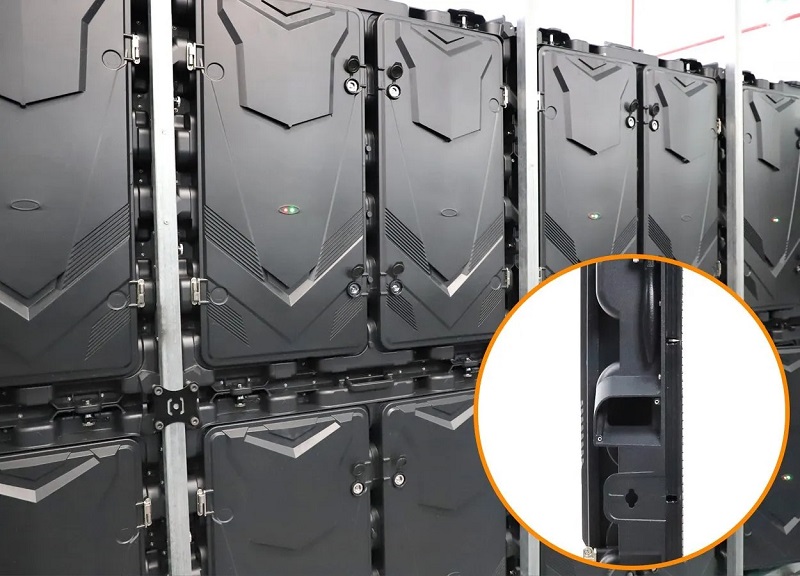

Invisible Cable Design

The power and data cables are connected through the holes on the side of LED panel, which make cables invisible.

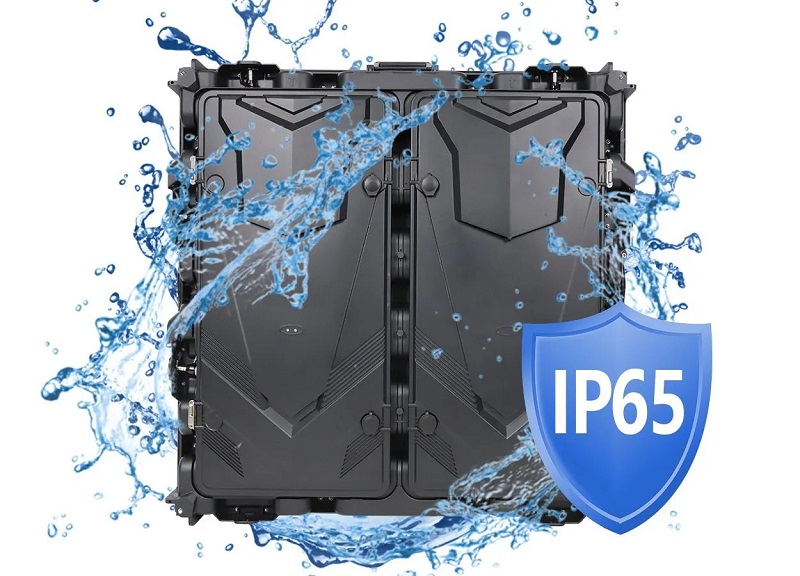

IP65 Rated Waterproof and Dustproof

Better response to the outdoor harsh environment, extended service life, reduce maintenance times

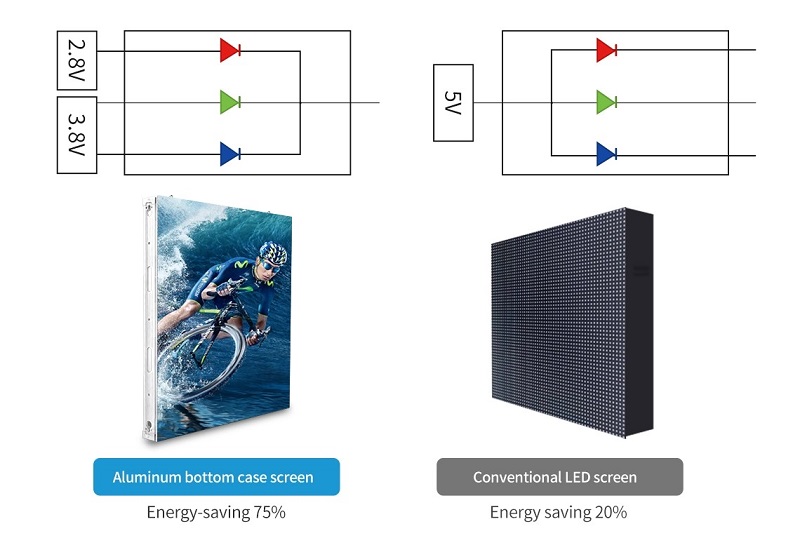

Common Cathode Energy Saving Technology

Using the scheme of separating the lamp beads of R, G, and B colors, gives them a separate power supply, effectively reducing power consumption and heat. The maximum energy saving is limited to 75% while ensuring high brightness and high contrast.

Super Wide Viewing Angle

Perfect presentation of images from any angle

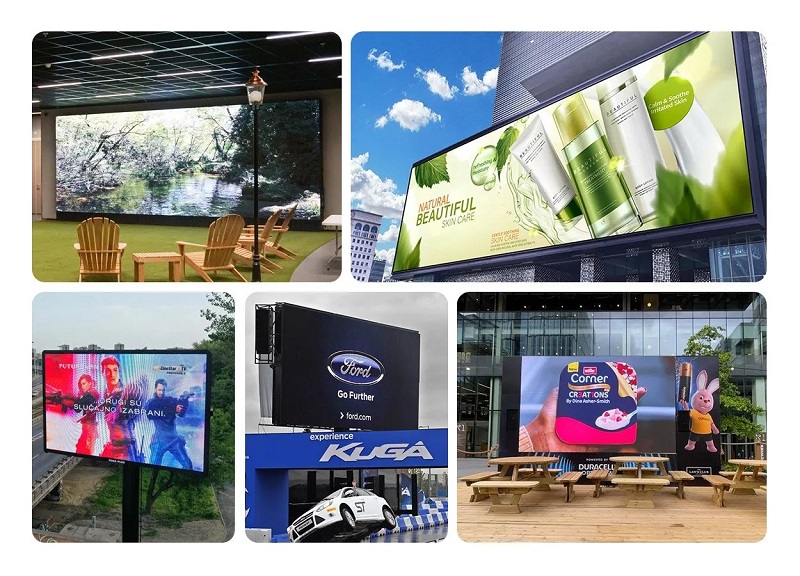

Application

OD series is suitable for a variety of application scenarios, such as commercial plazas, event venues, stage performances and commercial street advertisements, and can meet various commercial display needs.

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

Outdoor Fixed LED Display-OD Series

ITEM	P3	P4	P5	P6.6	P8	P10
Pixel Pitch	3.076mm	4mm	5mm	6.67mm	8mm	10mm
LED Lamp Model	SMD1415	SMD1921	SMD1921	SMD2727	SMD2727	SMD3535
Brightness (nits)	5500	5500	5500	5500	5500	5500
Cabinet Size (W*H) mm	960x960	960x960	960x960	960x960	960x960	960x960
Cabinet Weight (kg/cabinet)	23kg	23kg	23kg	23kg	23kg	23kg
Cabinet Resolution (W*H)	312x312	240x240	192x192	144x144	120x120	96x96
Density of Pixels (pixels/m2)	105,625	62,500	40,000	22,500	15,625	10,000
Cabinet Material	Die-casting Aluminum
Protection Level	IP65/IP54
Viewing Angle (degree)	140/140
Operating Environment	-20~+65℃ 10%-90% RH
Refresh Rate	3840Hz
Gray Scale	14-22 bits
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	786W/㎡	800W/㎡	800W/㎡	800W/㎡	800W/㎡	800W/㎡
Average Power (W/m2)	262W/㎡	280W/㎡	280W/㎡	280W/㎡	280W/㎡	280W/㎡
Maintenance Way	Front&Rear
