Stage Event Rental LED Display (H Series)

Stage Event Rental LED Display (H Series)

H Series:

H series is a rental LED Display that could use for both indoor and outdoor applications. It is used for concerts, wedding parties, light stage, T-stage shows, exhibitions etc. LR Series is the right one to choose if you have a high stable quality option.

Product features:

Full front service.

Corner protection design.

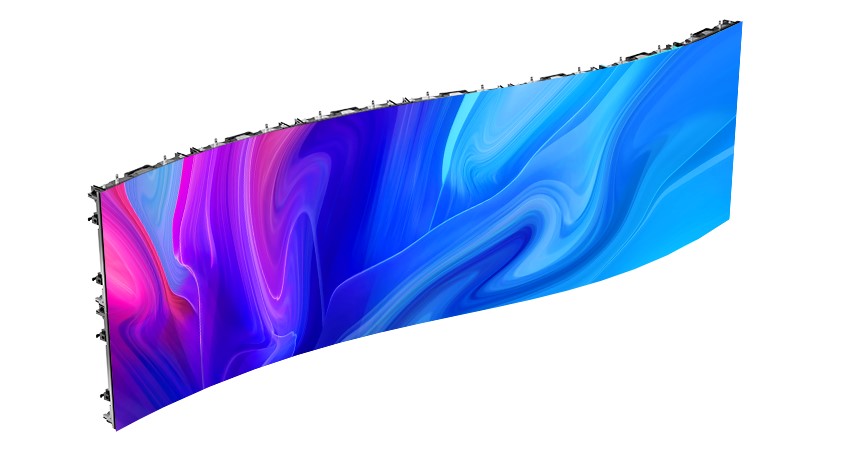

Flat and curved screen.

Seamless side lock.

No fan, no noise.

Get Quotes For Free Contact Sales

Product features Video & Specification Specification Contact us Contact Sales

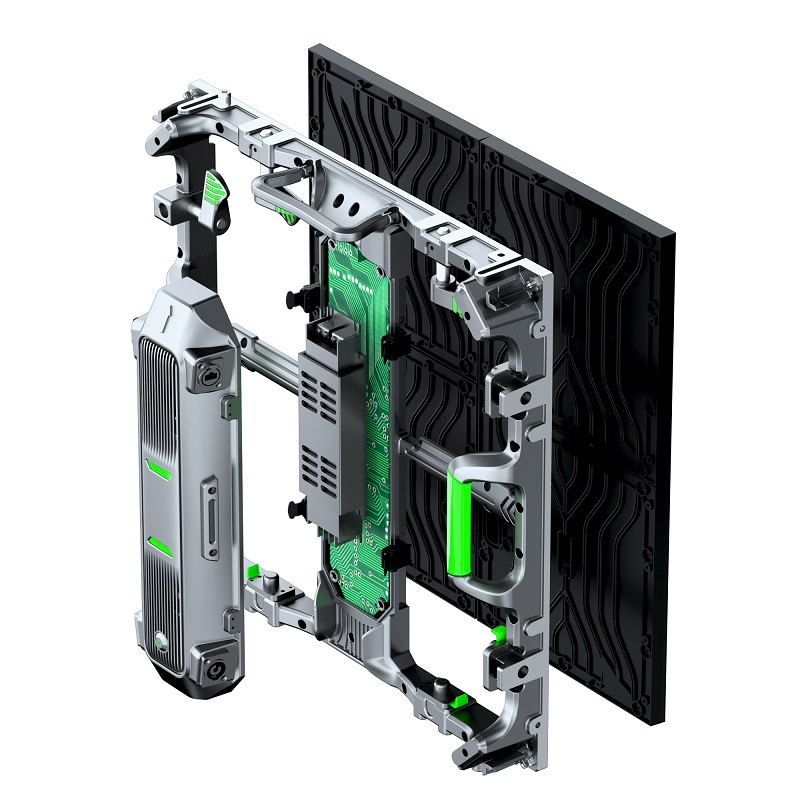

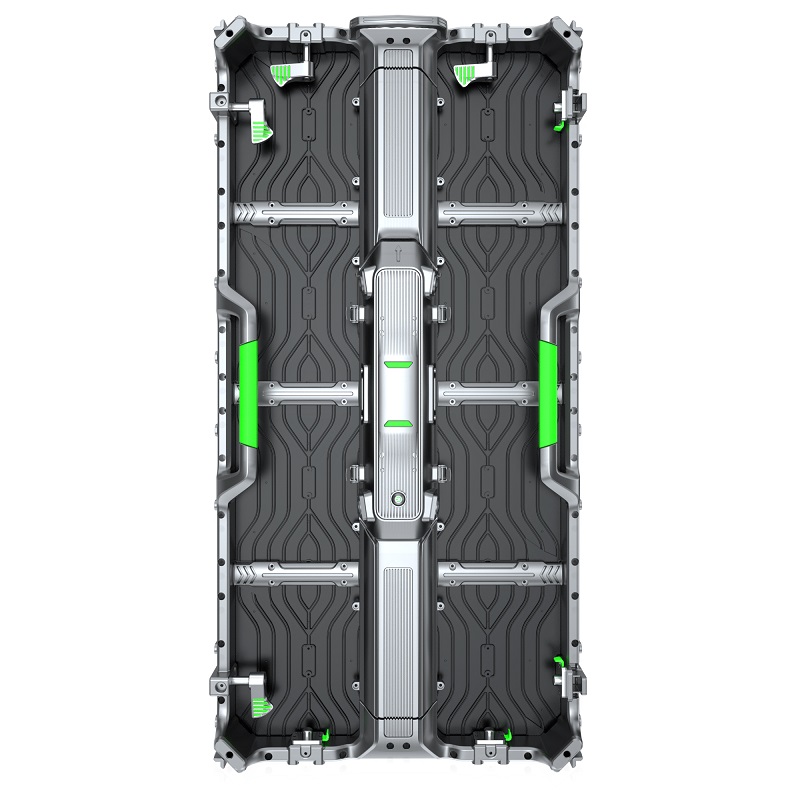

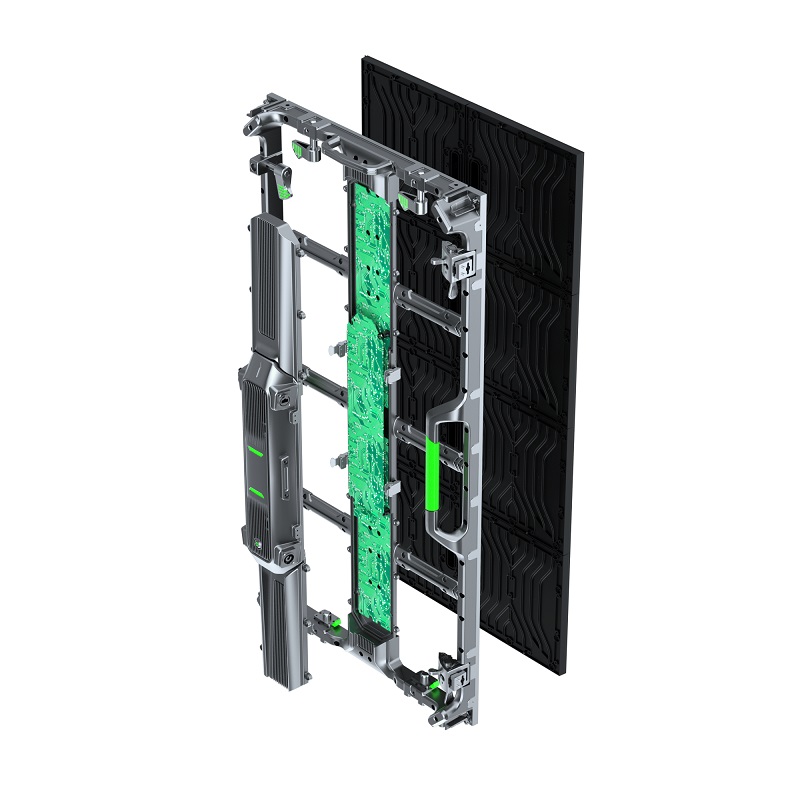

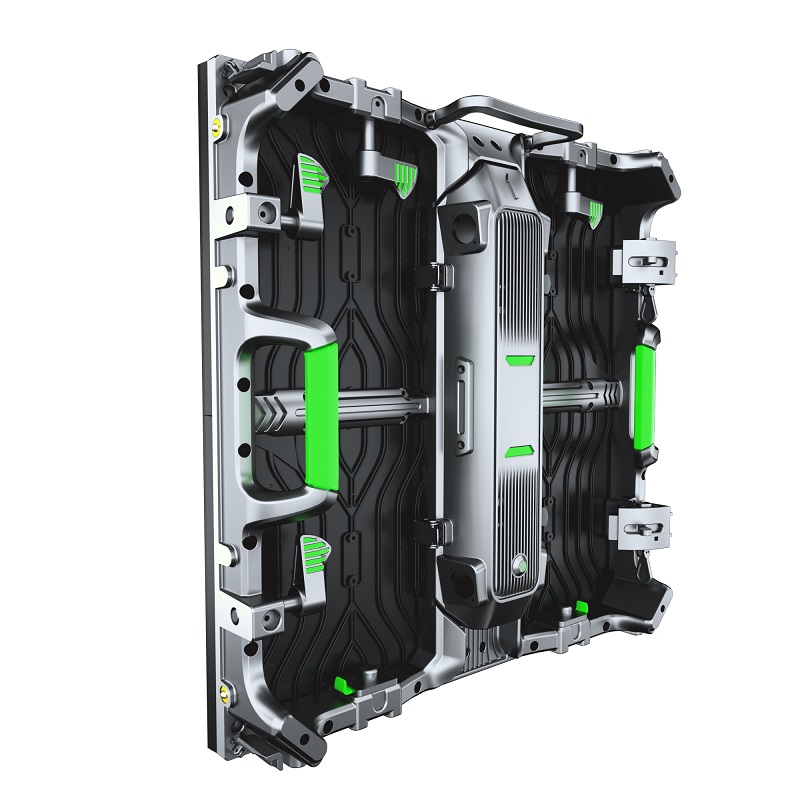

Perfect Cabinet Design

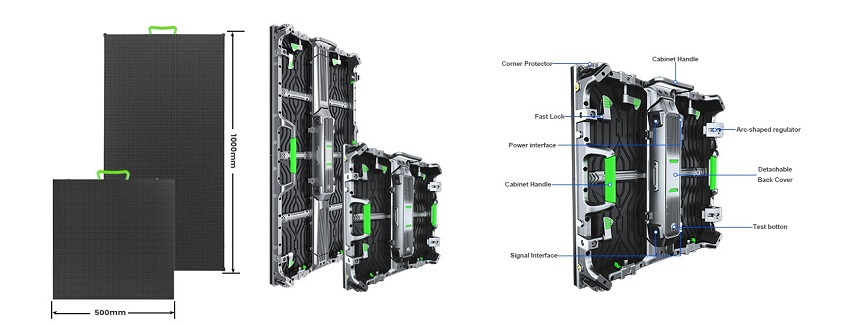

Excellent product came in all details from the cabinet handle. cabinet fixed slot, fast lock, magnet adsorption module, module installation knob, Power & signal connector, detachable power boxing etc.

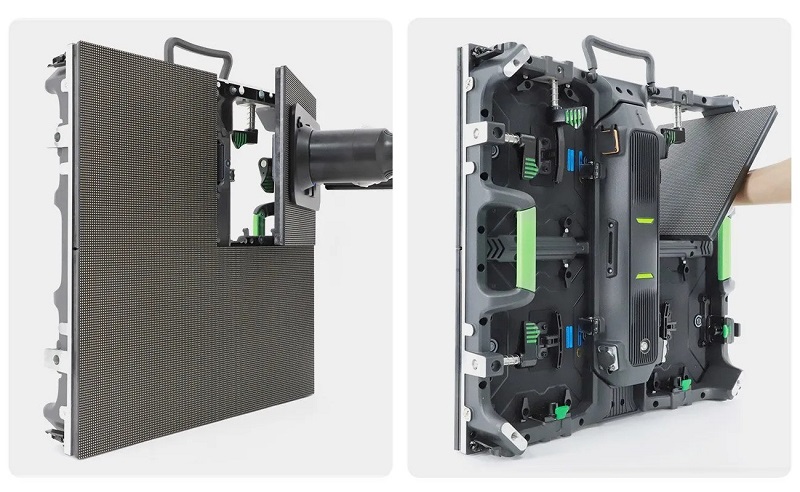

Front and Rear Service

Front or rear service of LED modules, quick changing, saving time.

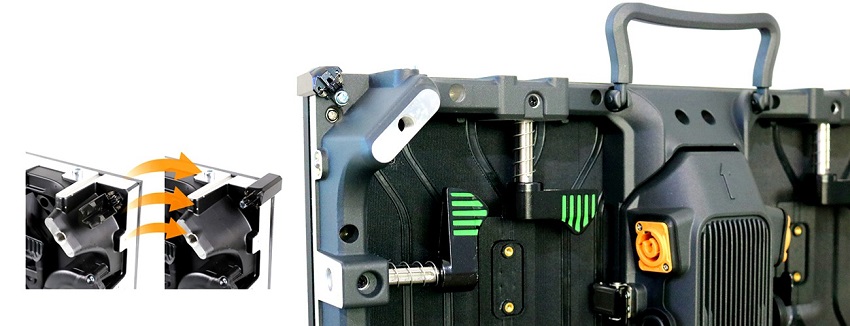

High Strength Corner Protector

Foldable all-around corner protector, each pixel well-protected in transportation, installation, operation etc.

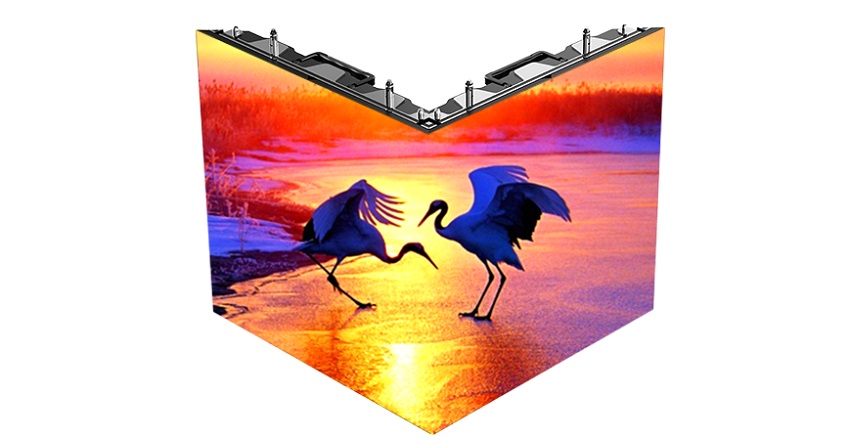

Cube LED Display

LED cabinets are directly assembled at a 90-degree angle, which is easy to achieve cube LED Screen.

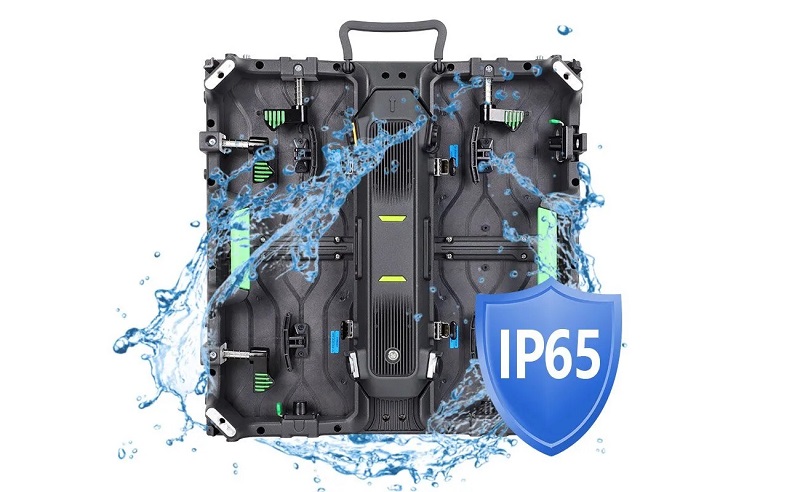

IP65 Dustproof and Waterproof

We support IP65 dustproof and waterproof, and it can resist severe weather conditions during outdoor activities. Besides, the die-cast aluminum cabinet is corrosion resistant.

Removable Power Box

Cableless design, powerbox quick changing, saving time.

Wide Viewing Angle

Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

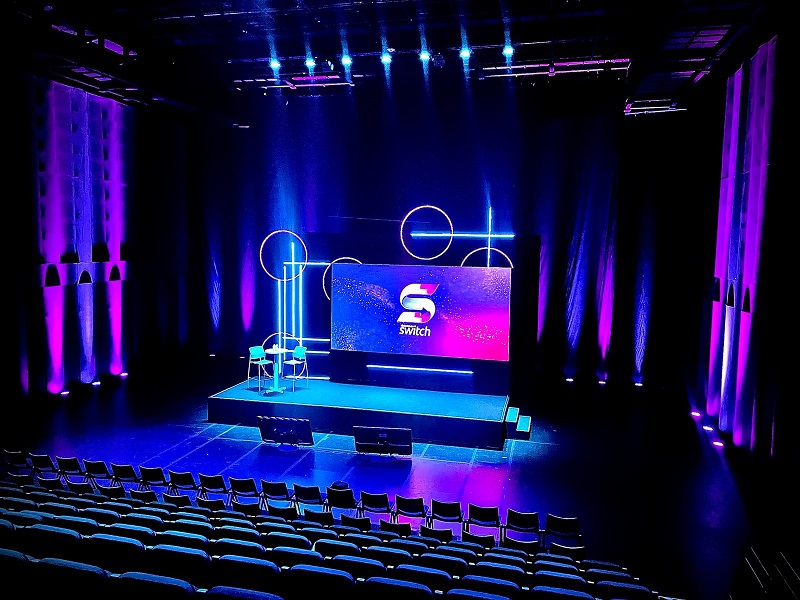

Application

H series is widely used for concerts, wedding parties, light stage.T-stage shows, exhibitions, etc

Video & Specification

To ensure that you find the correct solution, please download the specification

Specification Download

Rental LED Display-H Series

ITEM	P2.6i	P2.9i	P3.9i	P2.9	P3.9	P4.8
Pixel Pitch	2.604mm	2.976mm	3.906mm	2.976mm	3.906mm	4.807mm
LED Lamp Model	SMD1515	SMD2020	SMD2020	SMD1415	SMD1921	SMD1921
Brightness (nits)	800-1200nits	800-1200nits	800-1200nits	4500-5500nits	4500-5500nits	4500-5500nits
Cabinet Size (W*H)	500x500mm 500x1000mm	500x500mm 500x1000mm	500x500mm 500x1000mm	500x500mm 500x1000mm	500x500mm 500x1000mm	500x500mm 500x1000mm
Cabinet Weight (kg/cabinet)	8.5/12.8kg	8.5/12.8kg	8.5/12.8kg	8.8/13.5kg	8.8/13.5kg	8.8/13.5kg
Cabinet Resolution (W*H)	192x192/192x384	168x168/168x336	128x128/128x256	168x168/168x336	128x128/128x256	104x104/104x208
Density of Pixels (pixels/m2)	147,456 pixels	112,896 pixels	65,536 pixels	112,896 pixels	65,536 pixels	43,264 pixels
Cabinet Material	Die-Casting Aluminum
Protection Level	IP40/IP40			IP65/IP54
Viewing Angle (degree)	140/140
Operating Environment	-20~+50℃ 10%-90% RH
Refresh Rate	1920/3840Hz
Gray Scale	14 bit
Signal Input	DVI, HDMI 1.3/2.0, DP1.2,VGA,SDI etc
Operating Voltage	100-240V AC 50~60Hz
Service Life	100000Hours
Maximum Power (W/m2)	550W/㎡	520W/㎡	580W/㎡	650W/㎡	620W/㎡	650W/㎡
Average Power (W/m2)	192W/㎡	182W/㎡	203W/㎡	227W/㎡	217W/㎡	230W/㎡
Maintenance Way	Front&Rear
